LAMPO CUT EVO
Regular price
$94990
Unit price

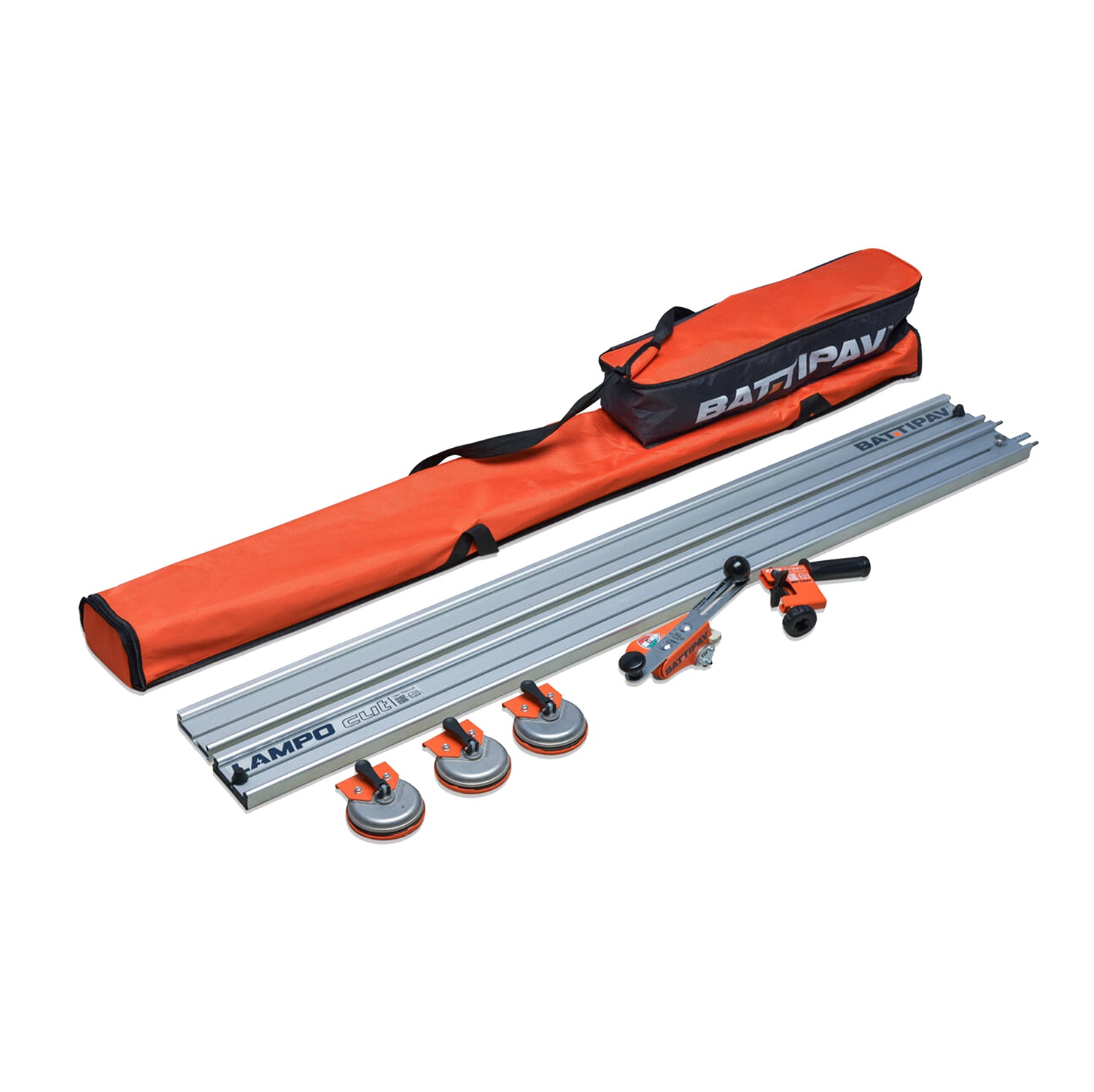

The Battipav LAMPO CUT EVO is a manual rail cutting system for scoring and breaking large-format tile up to 3200 mm (126 in) long. Two 1690 mm high-resistance profile rails use rubber inserts to improve stability during cutting and help protect the tile surface. Three suction cups secure the guides to the material.
The kit includes one cutting carriage with three nylon sliding pulleys and three ball bearings, two 15 mm cutting wheels with a key set, one Easy Break for tiles up to 25 mm thick, one plier for 7 mm material, and one soft carrying bag. Battipav lists a 10 mm cutting thickness when used with its pliers, Art. 11301.
Article Number
11101/2
Model
LAMPO CUT EVO
Product Use
Scoring and Breaking Large-Format Tile
Operation
Manual Rail Cutting System
Maximum Cutting Length
126 in (3200 mm)
Cutting Thickness with Battipav Pliers
0.39 in (10 mm), Art. 11301
Easy Break Capacity
Up to 0.98 in (25 mm)
Included Pliers
For 0.28 in (7 mm) Material
Rails
2 High-Resistance Profile Rails with Rubber Inserts
Single Rail Length
66.5 in (1690 mm)
Suction Cups
3
Cutting Carriage
1
Carriage Guidance
3 Nylon Sliding Pulleys with 3 Ball Bearings
Cutting Wheels
2 Supplied, 15 mm Diameter, Key Set Included
Carrying Bag
Soft Bag Included
Included Standard
2 Rails, 3 Suction Cups, 1 Carriage, 2 Cutting Wheels, 1 Easy Break, 1 Plier, 1 Soft Bag
Packaging Dimensions
70.9 x 8.3 x 6.7 in (1800 x 210 x 170 mm)
Weight
23.1 lb (10.5 kg)
