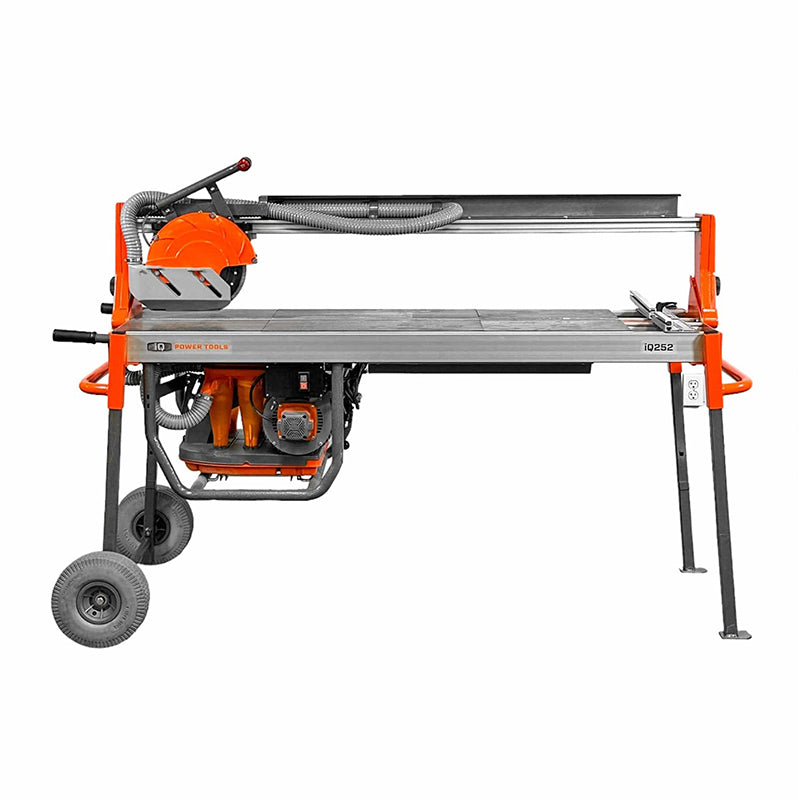

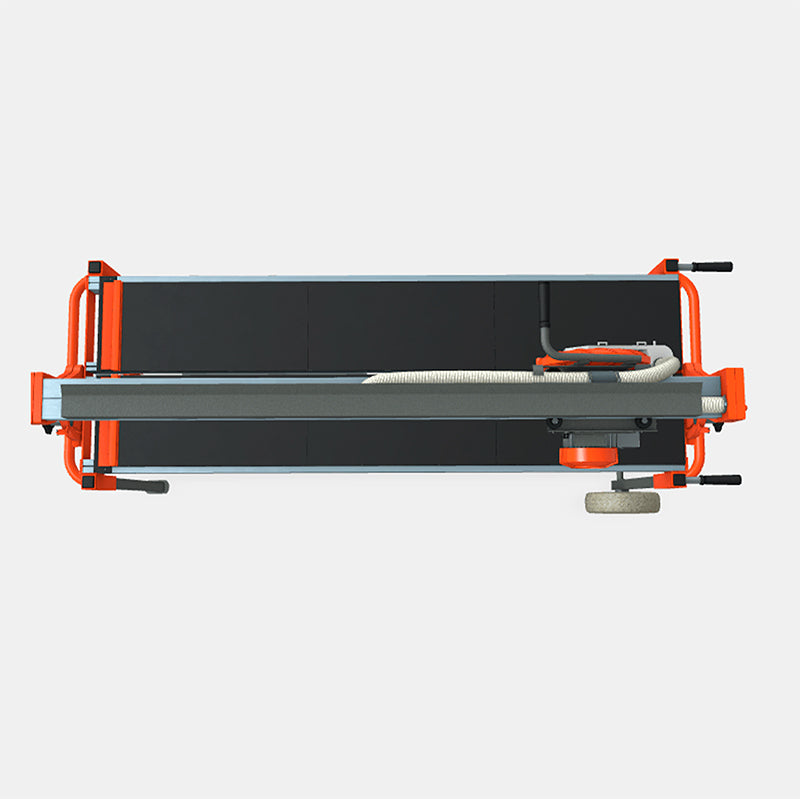

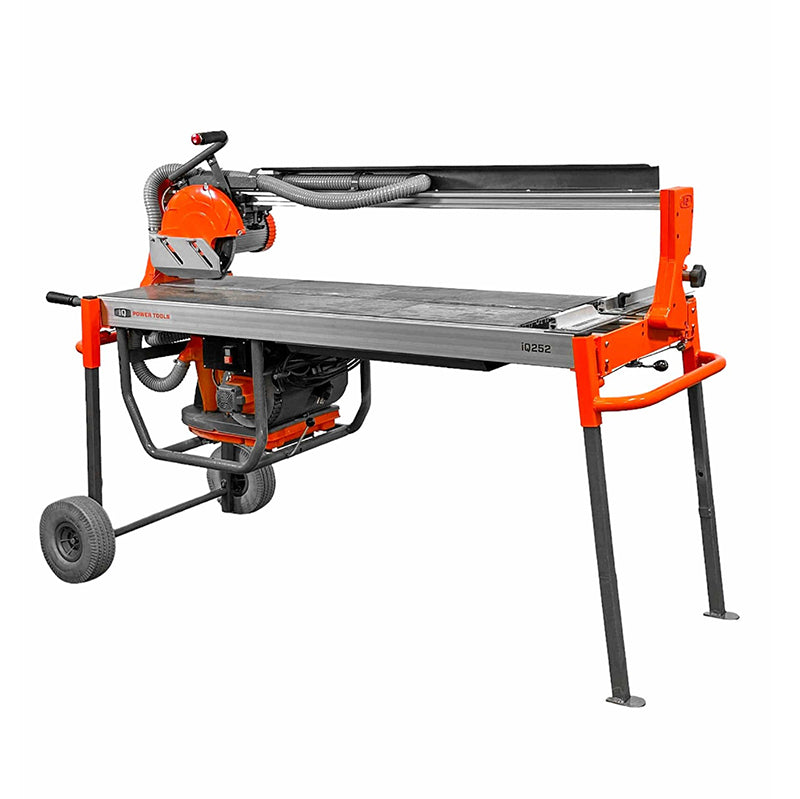

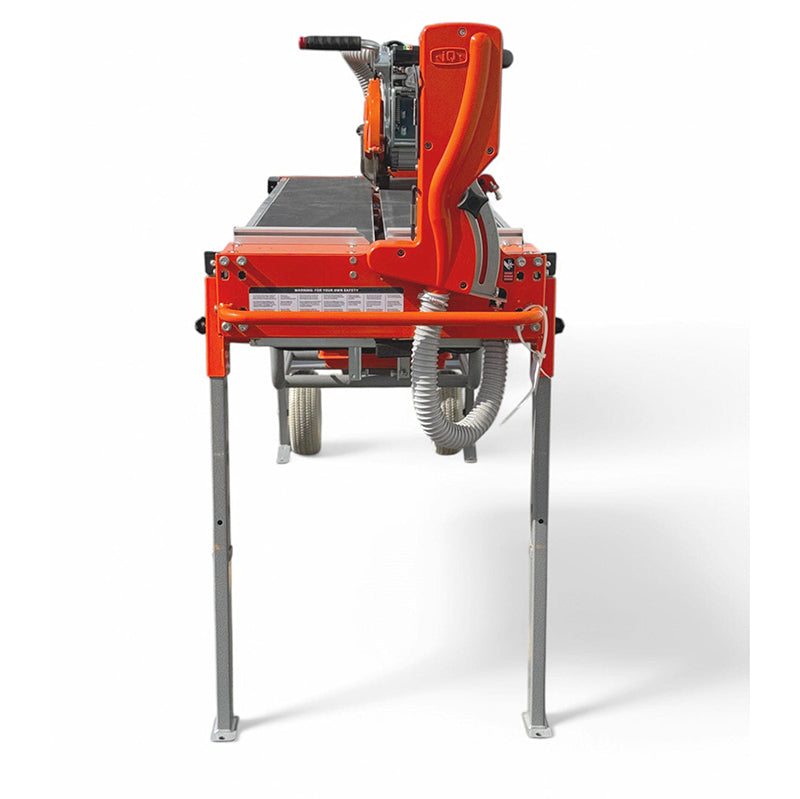

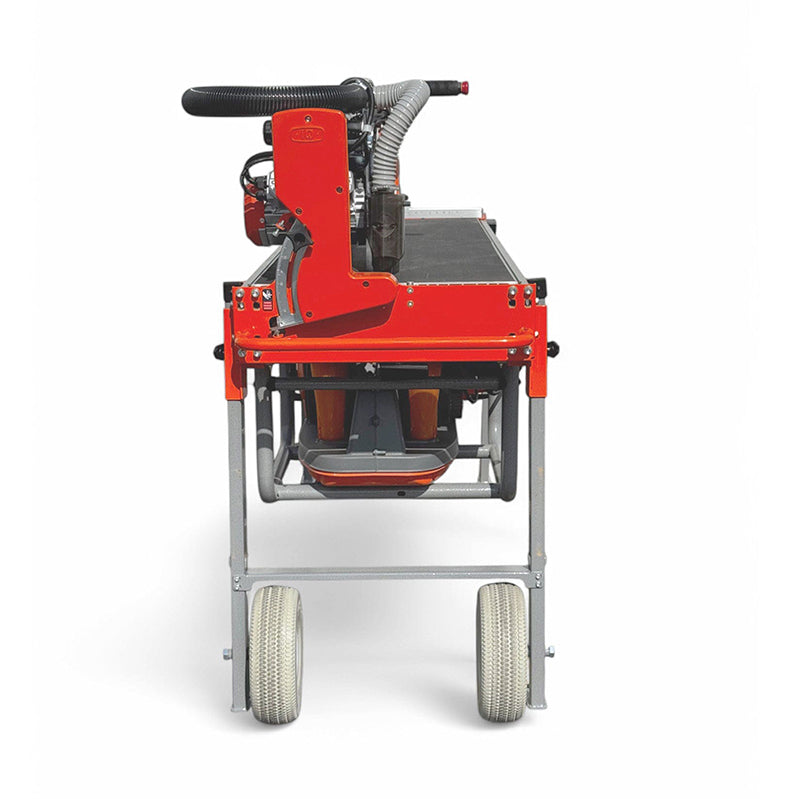

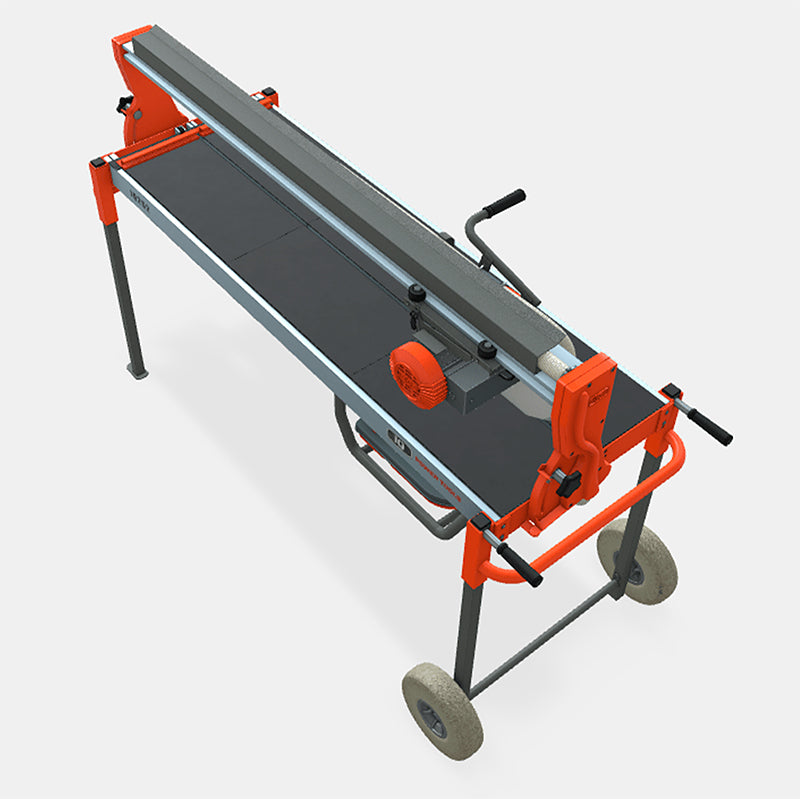

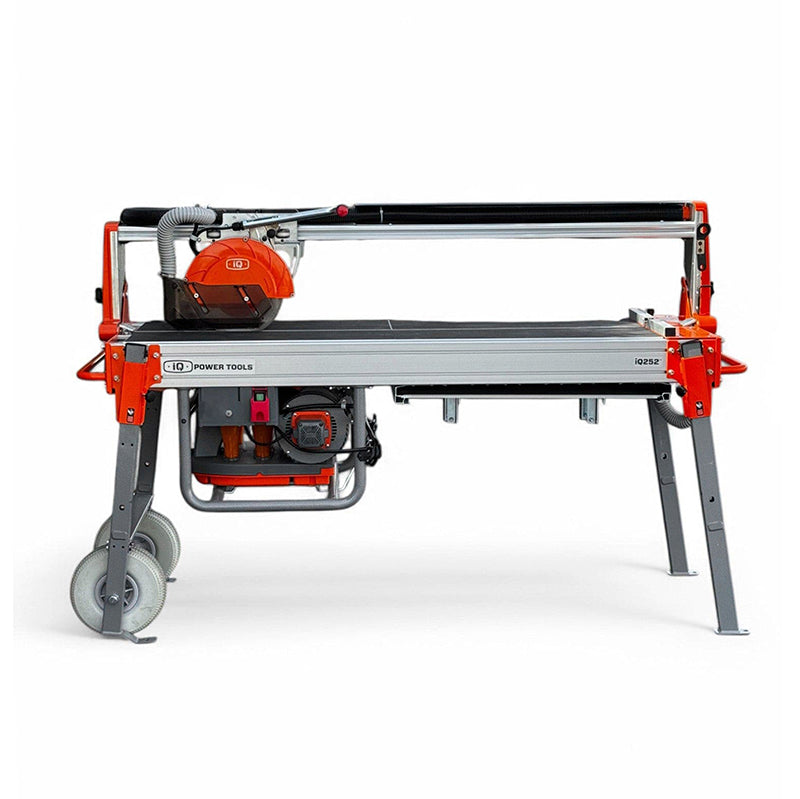

iQ252 10" Dry Cut Rail Tile Saw

Regular price $4,62190
Shipping calculated at checkout.

The iQ252 10" Dry Cut Rail Tile Saw, also referred to by iQ Power Tools as a dry cut bridge saw, is made for cutting large-format tile, porcelain, stone, and similar materials without water. It has a 52" rip cut capacity and 36" diagonal cut capacity, making it a good fit for tile contractors, remodelers, and indoor installation work where water and slurry cleanup slow the job down.

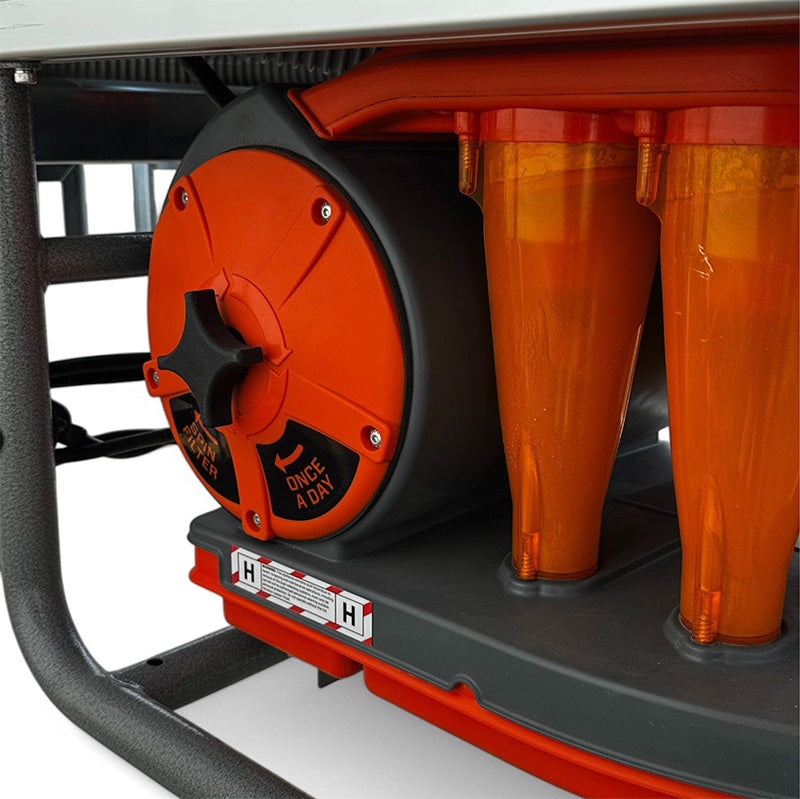

The iQ252 runs on 120V power and uses a 10" Q-Drive blade with integrated dust collection. The 11 lb dust chamber and iQ Dura Bond Cartridge filter help control dust while cutting dry, giving contractors a cleaner setup for indoor and outdoor tile work.

Applications
Large-Format Tile, Porcelain, Stone, Remodeling, Indoor Tile Cutting, Outdoor Tile Cutting
Blade Size
10" Q-Drive
Rip Cut Capacity
52"
Diagonal Cut Capacity
36"
Power Requirements
120V, 20 Amp

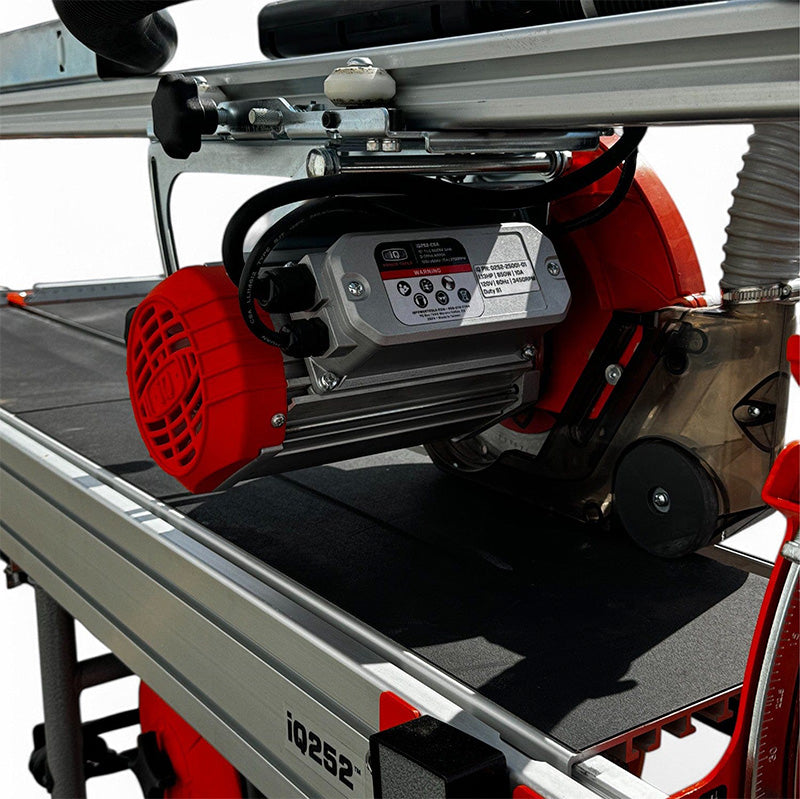

Saw Motor Power
1.5 HP / 15 Amps
Vacuum Motor Power
0.8 HP / 5 Amps
Filter Type
iQ Dura Bond Cartridge
Dust Capacity
11 lbs
Saw Weight
250 lbs
Dimensions
24" W x 47" H x 68" L
Recommended Extension Cord
25 ft / 12 Gauge or 50 ft / 10 Gauge
Recommended Generator
2500 Watts
Owner's Manual
Recommended
Tile Contractors, Remodeling Contractors, Indoor Installations, Large-Format Tile Work
