iQ Power Tools  |  SKU: iQ228CYCLONE CSA
New arrival

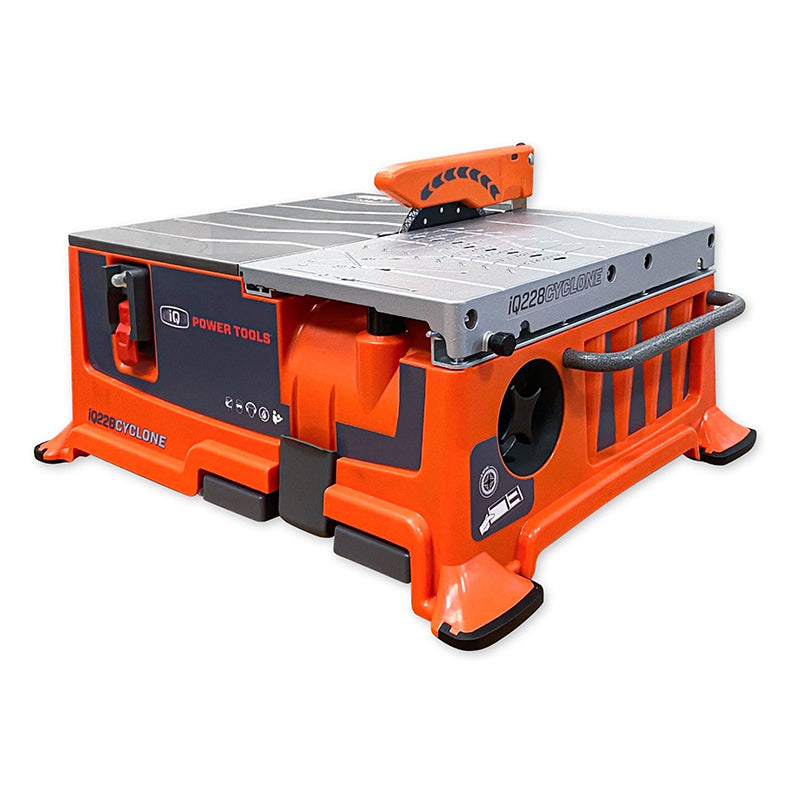

iQ228 Cyclone 7" Dry Cut Table Tile Saw

$51490
Shipping calculated at checkout.

The iQ228 Cyclone 7" Dry Cut Table Tile Saw is a compact tile saw for cutting ceramic, porcelain, stone, and similar tile materials without water. It has a 1.25" depth of cut, 24" rip cut capacity, 18" diagonal cut capacity, and integrated dust control for tile work where water and slurry cleanup are not practical.

The iQ228 Cyclone runs on 120V power and uses a 7" Q-Drive blade with an iQ Dura Bond Cartridge filter. At 36 lbs, it is easy to move between job sites, remodels, punch-list work, and smaller tile installations. The saw includes a Q-Drive combo blade and double fences for steady tile positioning during cuts.

Applications
Ceramic Tile, Porcelain Tile, Stone Tile, Small Tile Jobs, Remodeling, Indoor Tile Cutting, Jobsite Tile Work
Blade Size
7" Q-Drive
Rip Cut Capacity
24"
Rip Cut with Rolling Table
18"
Rip Cut without Rolling Table
Over 24"
Diagonal Cut Capacity
18"
Cutting Depth
1.25"
Power Requirements
120V, 15 Amp
Saw Motor Power
1.25 HP / 15 Amps
Vacuum Motor Power
15 Amps
Filter Type
iQ Dura Bond Cartridge
Dust Capacity
5 lbs
Saw Weight
36 lbs
Dimensions
21.3" W x 13.4" H x 25.2" L
Included
Q-Drive Combo Blade, Double Fences
Recommended Extension Cord
25 ft / 12 Gauge or 50 ft / 10 Gauge
Recommended Generator
2500 Watts
Recommended
Tile Contractors, Remodelers, DIY Tile Projects, Indoor Tile Cutting, Portable Jobsite Use
Shipping Terms: Canada Only. Duties, taxes, customs fees, and brokerage fees are not included and are the customer’s responsibility.
