SUPREME 120S
Regular price
$3,94990
Unit price

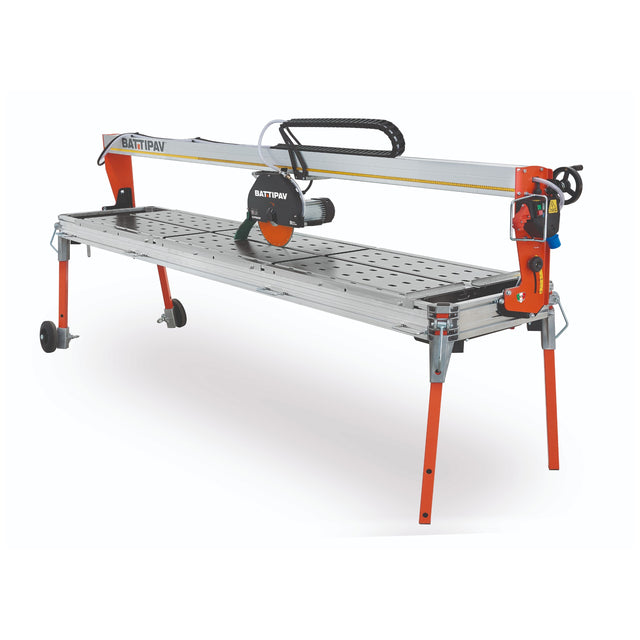

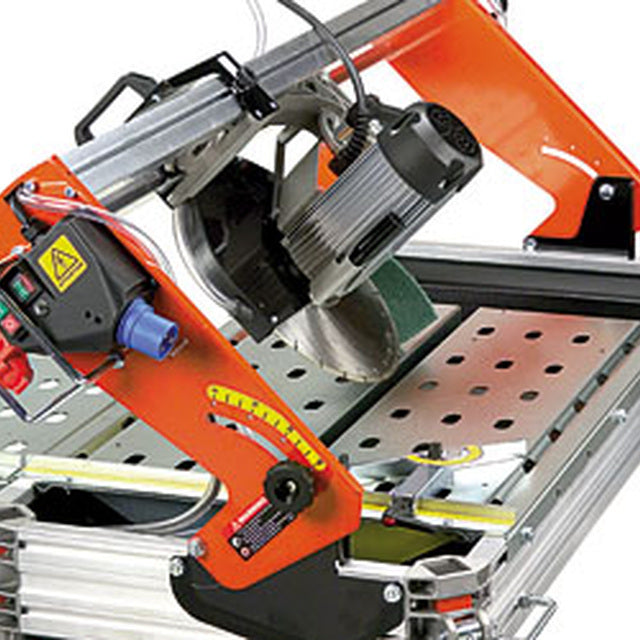

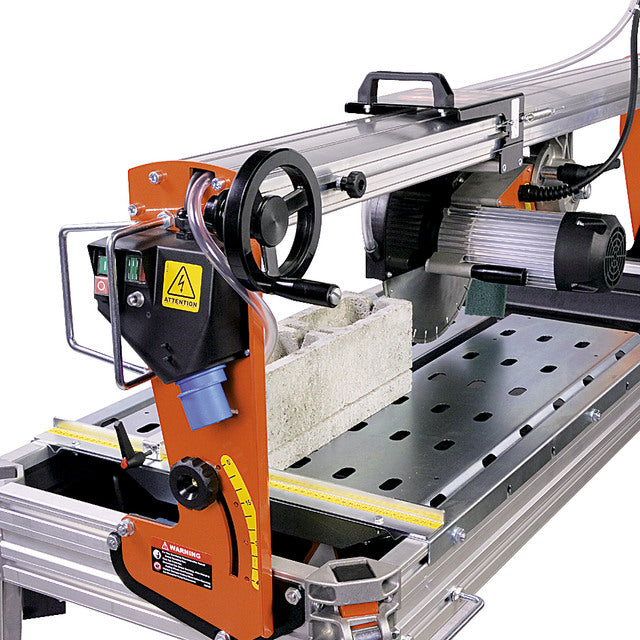

Built around a 47.2 in (1200 mm) cutting span, the SUPREME 120S performs straight and 45° cuts in natural stone, granite, and marble slabs. Manual handwheel control moves the motor group along the bridge, while the tilting head provides a maximum 45° cutting depth of 2.36 in (60 mm). The saw accepts a 12 in (300 mm) diamond blade and can reach a depth of 5.31 in (135 mm) with two cutting passes.
Power comes from a 3.0 hp (2.2 kW), 115V / 60Hz motor rated at 16A and 3400 rpm. Standard equipment includes a laser guide, wheel kit, adjustable legs, goniometer fence, water-recycling pump, cable, and U.S. plug. Diamond blade is not included.
SKU
USA81201/B
Model
SUPREME 120S
Product Use
Natural Stone, Granite, Marble Slabs
Cutting Type
Straight Cuts and 45° Angle Cuts
Cutting Progress System
Manual Handwheel Feed
Max Cutting Length
47.2 in (1200 mm)
Diagonal Cutting Capacity
33.3 x 33.3 in (845 x 845 mm)
Max Cutting Thickness
3.35 in (85 mm)
Max 45° Cutting Depth
2.36 in (60 mm)
Max Cutting Depth with 2 Runs
5.31 in (135 mm)
Blade Diameter
12 in (300 mm)
Blade Included
No
Tool Hole
1 in (25.4 mm)
Motor Power
3.0 hp (2.2 kW)
Power Supply
115V / 60Hz
Motor Current
16A
Rotation Speed
3400 rpm
Power Connection
Cable with U.S. Plug
Laser Guide
Standard
Wheels
Standard
Fence
Adjustable Goniometer Fence
Water Pump
Water-Recycling Pump
Water Tank Capacity
Min. 6.9 / Max. 10.8 U.S. Gallons (26 / 41 Liters)
Working Table Dimensions
46.7 x 24.6 in (1185 x 625 mm)
Machine Dimensions
78.0 x 35.4 x H 50.4 in (1980 x 900 x H 1280 mm)
Working Table
Galvanized Steel
Bridge
High-Resistance Extruded Aluminum Rail with Interchangeable Stainless Steel Bearing Tracks

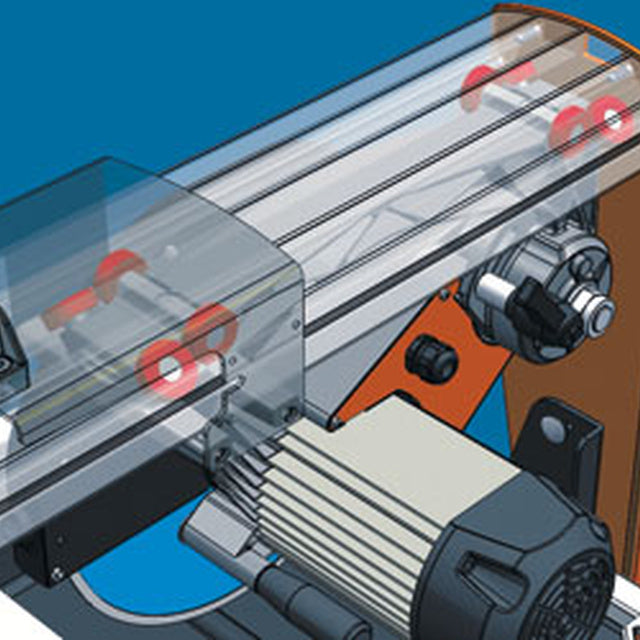

Carriage
Sliding Motor Group with 8 Ball Bearings, Including 4 Oriented Perpendicular to the Rail
Included Standard
Laser Guide, Wheels, Adjustable Legs, Adjustable Goniometer Fence, Manual Handwheel Feed, Water-Recycling Pump, Cable and U.S. Plug
Optional Equipment
Side Tile Support, Long Slot for Side Tile Support, Side Bench with Rollers, Extension Side Bench
Weight
229.3 lbs (104 kg)
