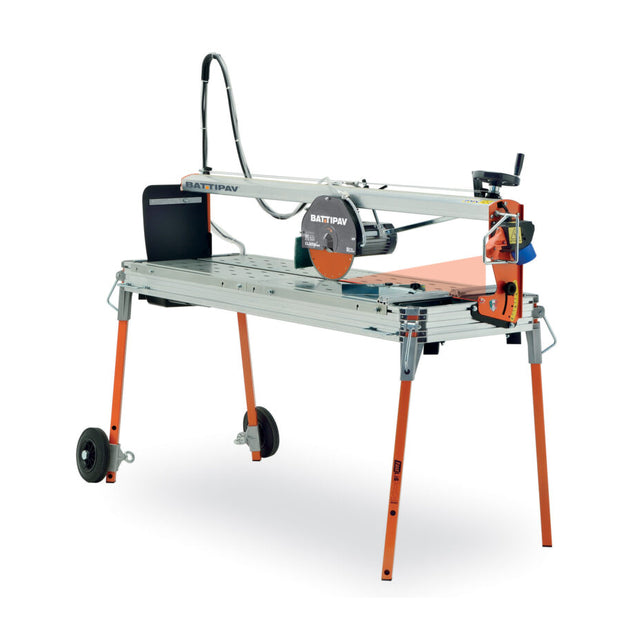

The Battipav CLASS PLUS 1300S is a water-cooled rail tile saw for straight and 45° angle cuts in porcelain stoneware, tile, and marble. Its sliding cutting head and tilting motor provide a 45.7 in (1160 mm) maximum cutting length, increasing to 51.2 in (1300 mm) when material thickness does not exceed 1.65 in (42 mm). Diagonal cutting capacity is 32.3 x 32.3 in (820 x 820 mm), increasing to 36.2 x 36.2 in (920 x 920 mm) at the same maximum material thickness.
The saw runs on 115V / 60Hz power with a 1.8 hp (1.4 kW) motor and uses a 10 in (250 mm) diamond blade. Adjustable legs, a laser guide, wheel kit, adjustable goniometer fence, water-recycling pump, and diamond blade are supplied standard. An extension side bench is available separately.
Product Use
Porcelain Stoneware, Tile, Marble
Cutting Type
Straight Cuts and 45° Angle Cuts
Max Cutting Length
45.7 in (1160 mm)
Max Cutting Length at 1.65 in Material Thickness
51.2 in (1300 mm) at Max. 1.65 in (42 mm) Material Thickness
Diagonal Tile Cutting Capacity
32.3 x 32.3 in (820 x 820 mm)
Diagonal Capacity at 1.65 in Material Thickness
36.2 x 36.2 in (920 x 920 mm) at Max. 1.65 in (42 mm) Material Thickness
Max Cutting Thickness
2.56 in (65 mm)
Max 45° Cutting Depth
2.09 in (53 mm)
Max Cutting Depth with 2 Runs
3.15 in (80 mm)
Blade Diameter
10 in (250 mm)
Tool Hole
5/8 in (15.8 mm)
Motor Power
1.8 hp (1.4 kW)
Engine Type
115V / 60Hz, Single-Phase
Water Pump
Water-Recycling Pump
Water Tank Capacity
Min. 5.8 / Max. 7.4 U.S. Gallons (22 / 28 Liters)
Side Bench Dimensions
53.3 x 20.6 in (1354 x 523 mm)
Machine Dimensions
69.1 x 26.6 x H 51.2 in (1755 x 675 x H 1300 mm)
Bridge
High-Resistance Aluminum Rail with Interchangeable Stainless Steel Bearing Tracks

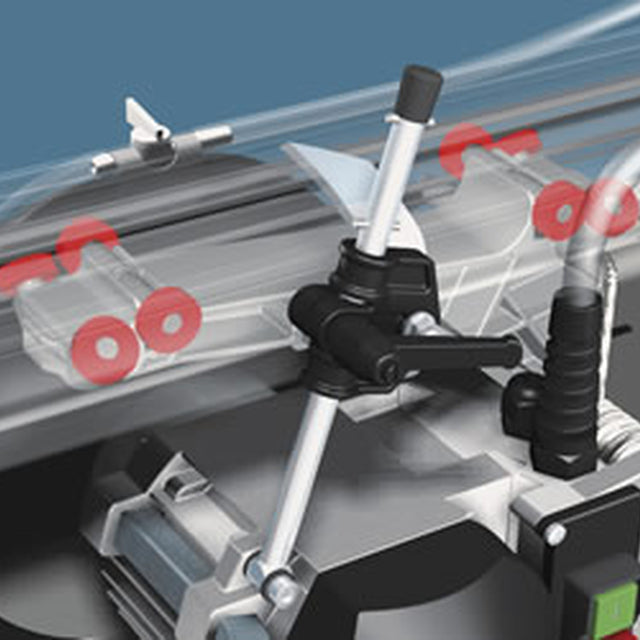

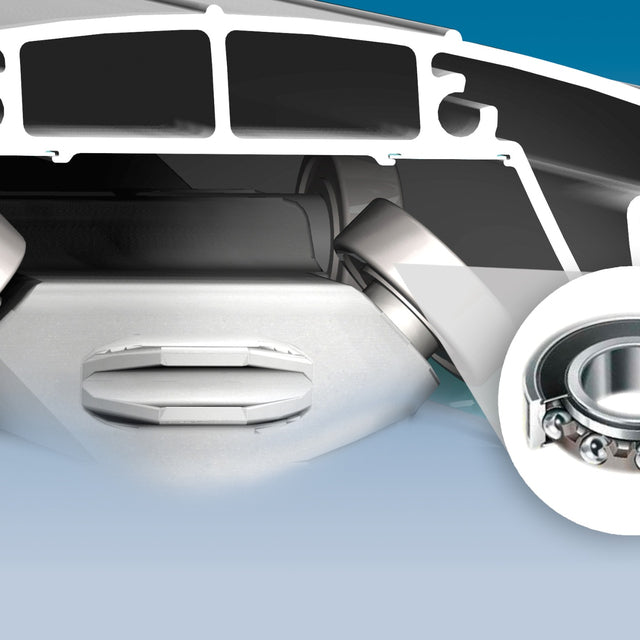

Carriage
Sliding Motor Group with 8 Ball Bearings

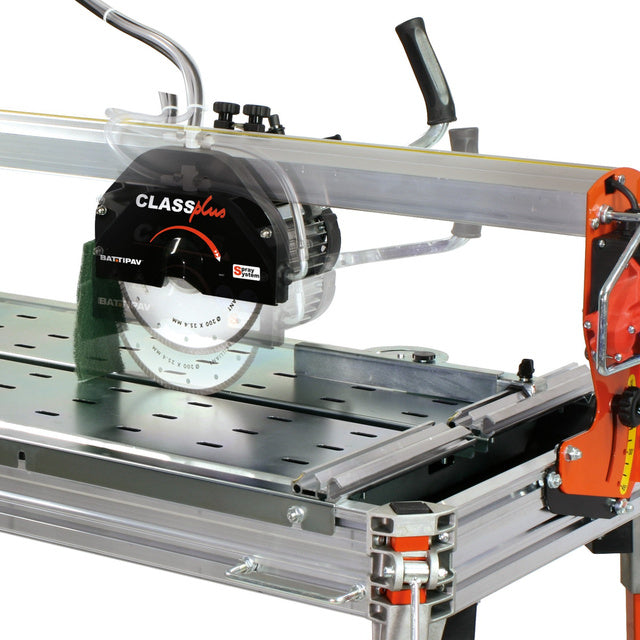

Cutting Head
Sliding and Pivoting Cutting Head with Adjustable Height Lock
Cutting Progress System
Standard
Fence
Adjustable Goniometer Fence, Standard
Side Tile Support
Optional
Long Slot for Side Tile Support
Optional
Tile Lock System
Optional
Extension Side Bench
Optional
Included Standard
Adjustable Legs, Wheel Kit, Laser Guide, Adjustable Goniometer Fence, Water-Recycling Pump, 10 in Diamond Blade
