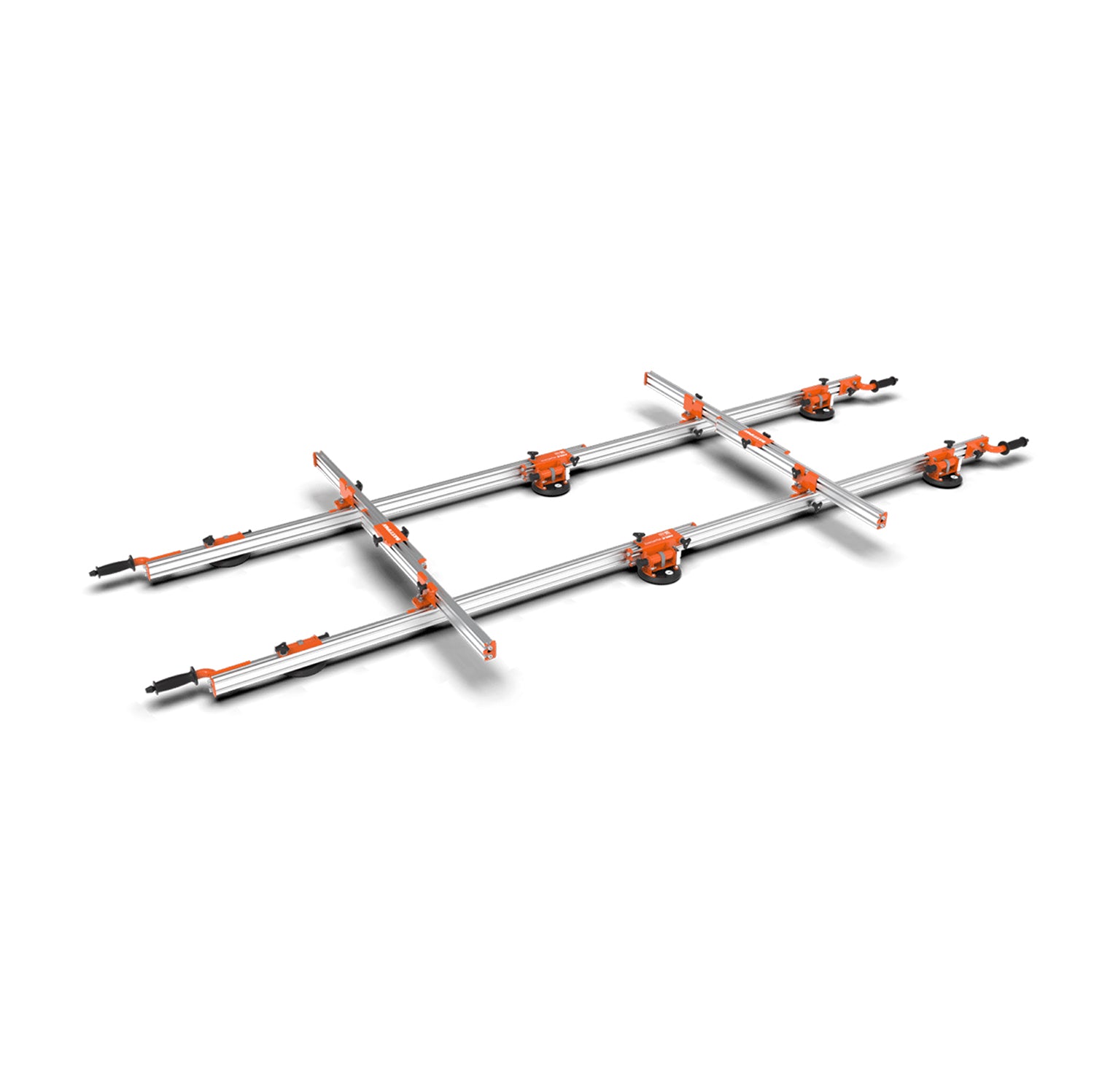

AGILE LIGHT PLUS Tile Handling System
Regular price
$2,49490
Unit price
The AGILE LIGHT PLUS is a manual lifting, handling, and installation system for large-format tiles and slabs. Its telescopic frame adjusts from 1720 to 3300 mm in length and 840 to 1580 mm in width, with a maximum load capacity of 352.7 lbs (160 kg).
The system includes two telescopic bars with four handles, crossbar kit Art. 11003/1, and six professional suction cups with vacuum indicators. Resistant rubber supports adhesion on rough surfaces. An optional carriage with wheels, Art. 11005/1, is available separately.
Article Number
11006/1
Model
AGILE LIGHT PLUS
Product Use
Handling and Installation of Large-Format Tiles and Slabs
Operation
Manual
Maximum Load Capacity
352.7 lbs (160 kg)
Maximum and Minimum Bar Length
3300 mm / 1720 mm
Maximum and Minimum Bar Width
1580 mm / 840 mm
Telescopic Bars
2
Handles
4 Total
Crossbar Kit
Included, Art. 11003/1
Suction Cups
6 Professional Suction Cups with Vacuum Indicators
Suction Cup Material
Resistant Rubber Designed for Adhesion on Rough Surfaces
Suction Cup Support
Art. 11004/1
Included Standard
2 Telescopic Bars, 4 Handles, Crossbar Kit, 6 Suction Cups
Carriage Included
No
Optional
Carriage with Wheels, Art. 11005/1
Packaging Dimensions
1795 x 640 x 255 mm
Pieces Per Pallet
8
Full Pallet Dimensions
650 x 1795 x 2060 mm
Weight
72.8 lbs (33.0 kg)
