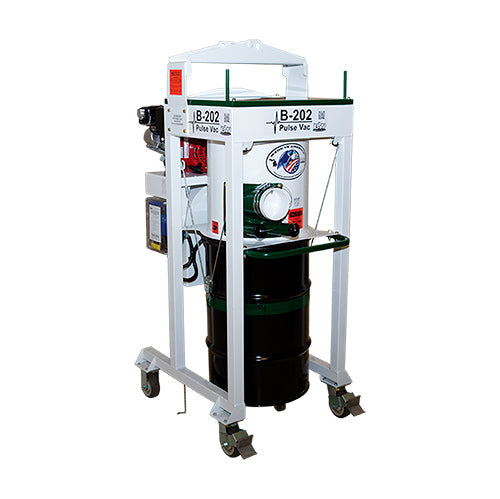

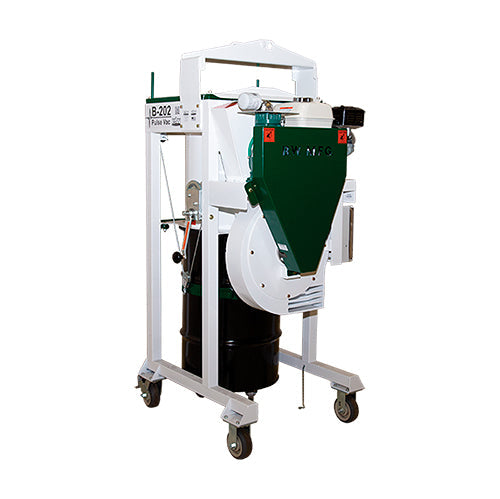

BW B-202 Pulse Vac
$000
Unit price
/
Unavailable
The B-202 Pulse Vac is a versatile dust containment system designed for contractors requiring large dust capacity, automatic filter pulsation, and high CFM. It utilizes a 30-gallon drum with a 600 lbs. capacity and offers motor options between a 6.5HP Honda gas engine and a 220V electric motor. The built-in compressed air filter pulsation system ensures continuous operation, reducing filter cleaning labor and maintaining productivity.
Dust Capacity
30 Gallon Drum (600 lbs. Capacity)
Filter System

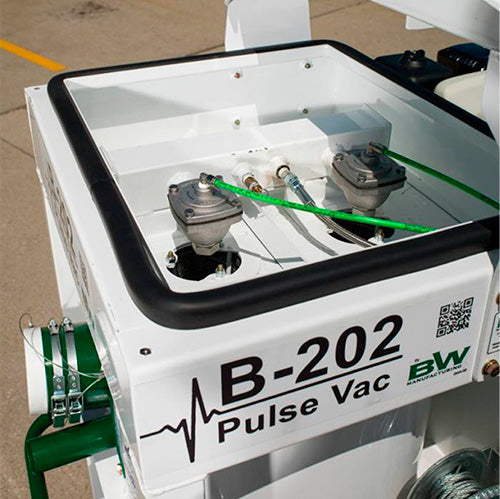

MERV16 Rated, 99.7% @ .3 Microns, Automatic Pulsation
Motor Options

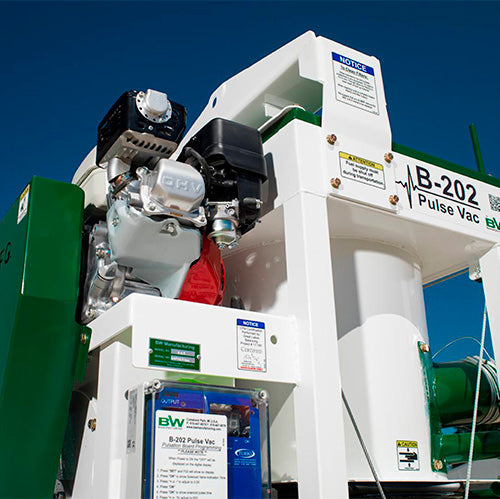

6.5HP Honda Gas Engine / 5HP 220V Electric Motor (18 Amp Draw, Built to Order)
Vacuum Performance
1105 CFM @ One 5” Port, 18” H2O Lift (Sealed)
Construction
Powder Coated Steel
Compressor
2.5 CFM Air Cooled, Oil-Filled
Dimensions (H x L x W)
59″ x 34.5″ x 28″ (150 x 88 x 71 cm)
Weight
375 lbs (170 kg)
Wheels
2 x 5″ Rubber Stationary Casters, 2 x 5″ Rubber Swivel Casters

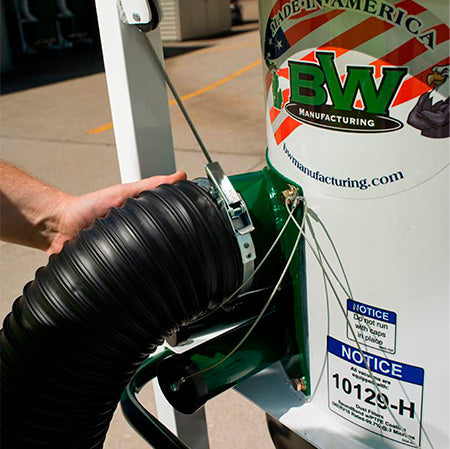

Hose
5″ x 15′ Wire Reinforced, Optional 2 x 2″ x 15′
