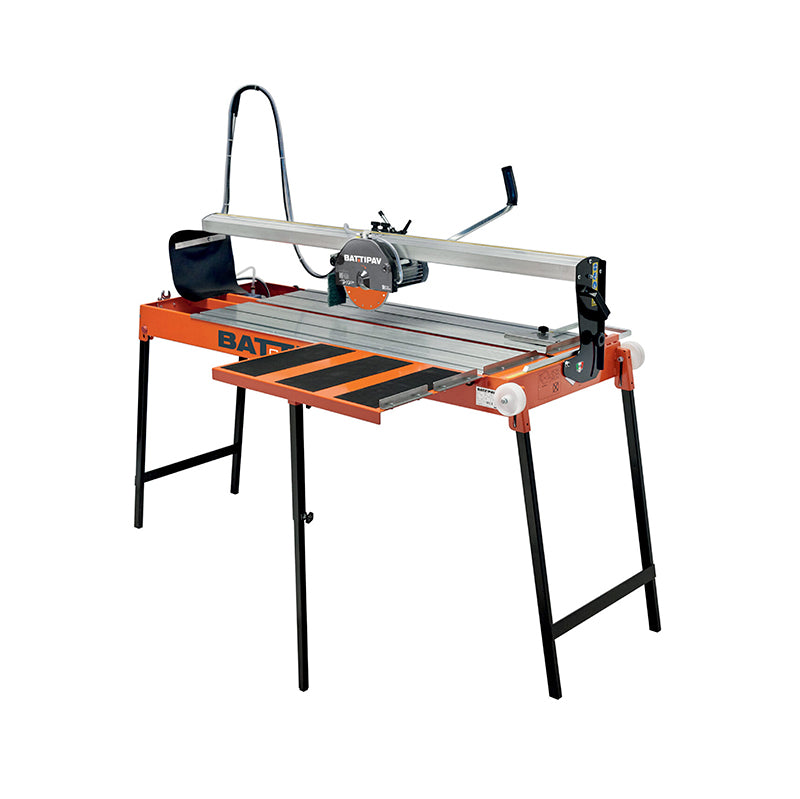

VIP 2125
The VIP 2125 is an electrical radial tile saw for straight and 45° angle cuts on single-double fired ceramic, porcelain gres. Light and compact, it is equipped with sliding head and tilting engine. The legs, closing under the working table, are standard. Water cooled.
Max cutting lenght
49.2" (1250 mm)
Max cutting thickness
1.6" (40 mm)
Max cutting depth for 45° (jolly) cut
1.4" (35 mm)
Power engine
1.8 HP / 1.4 KW
Rotation speed
2800 RPM
Side bench dimesion
46.1" × 20.5" (1170 × 520 mm)
Machine's dimension
73.6" × 24.6" × 52.8" (1870 × 625 × 1340 mm)
Weight
114 lbs (51.5 kg)
Equipped with
Single-phase motor 230V~50Hz 1400 Watt; Sliding cutting head and tilting engine; Switch with release coil; Diamond disk Ø200 c/c; Folding Legs; Pump for water recycling type S1
Guard protection disk
Tilting parallelly at the working bench, it raises the safety and reduces the water spray allowing a perfect visibility in the cut’s area.
Engine
Engine, engineered for this machine only, is perfectly integrated on the rail. It runs on registrable bearings.
Particular shapes
It makes every kind of shape due to the progressive adjustment of the cutting height.
Millimetre rail
Execution of the cuts in series due to the blocking handle with the immediate reading of the lenght on the rail.
Cleaning
Easy to clean
Optional
Extension side bench
