SUPREME 260S
Regular price
$5,67490
Unit price

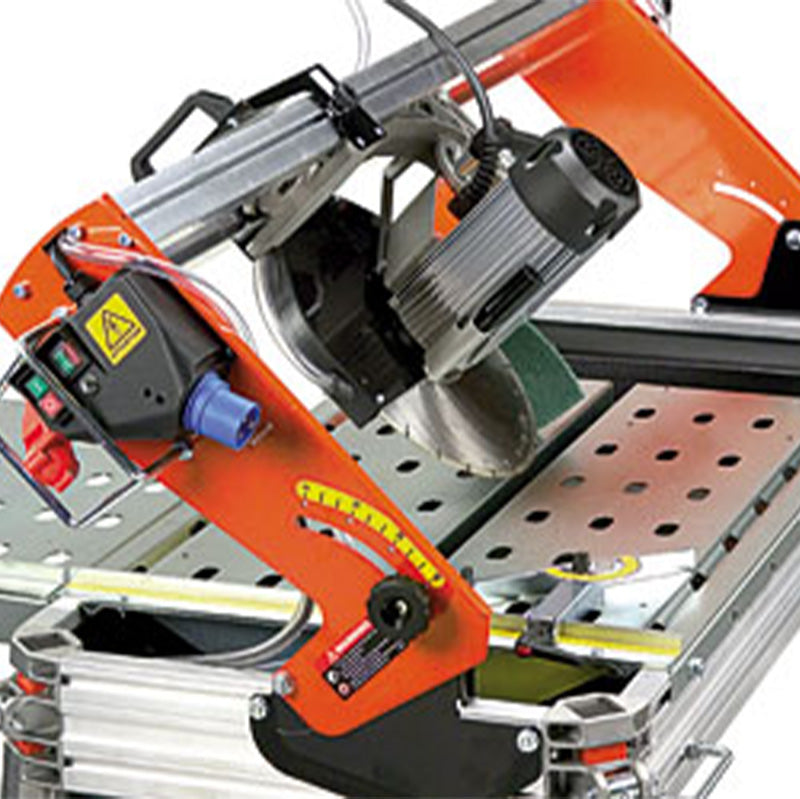

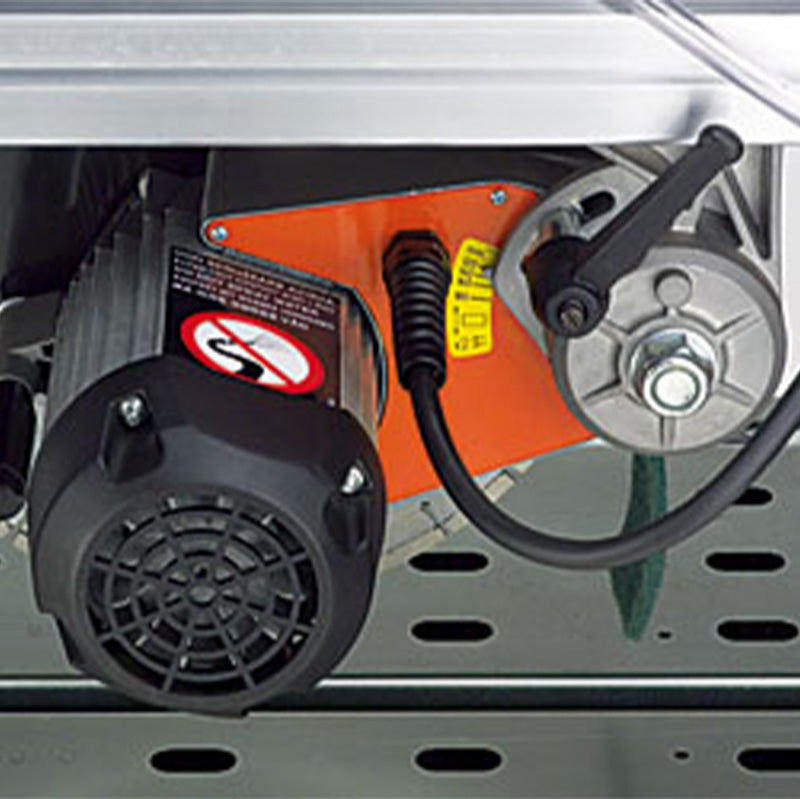

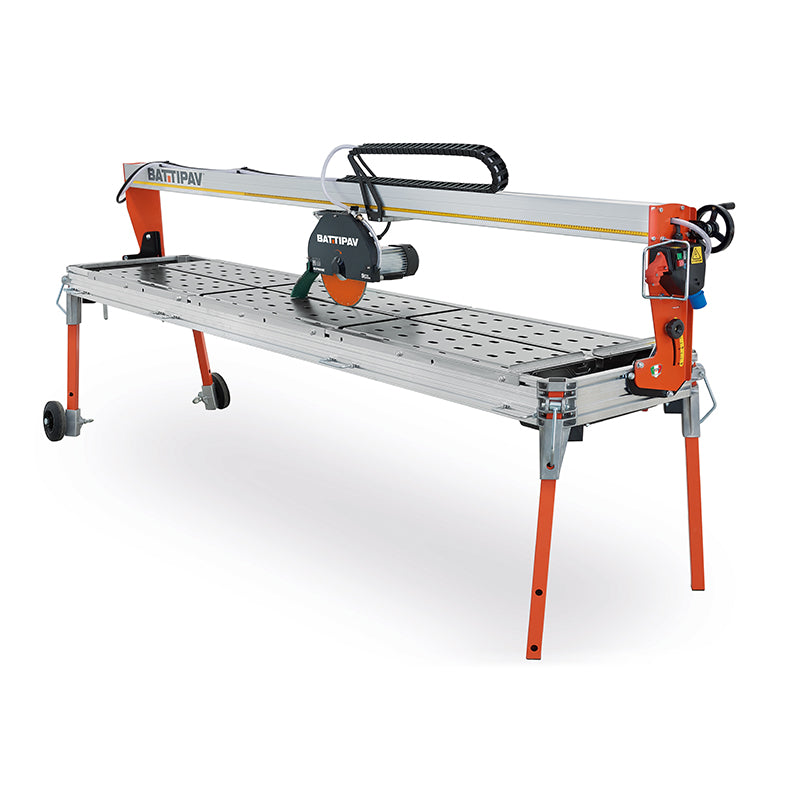

The SUPREME 260S is a bridge saw for cutting natural stone, granite, marble slabs, and large-format tile materials. It has a 2600 mm maximum cutting length, 1839 x 1839 mm diagonal tile cutting capacity, and a 300 mm diamond blade capacity. The sliding cutting head and tilting motor allow straight cuts, 45° angle cuts, and cutting depth adjustment.

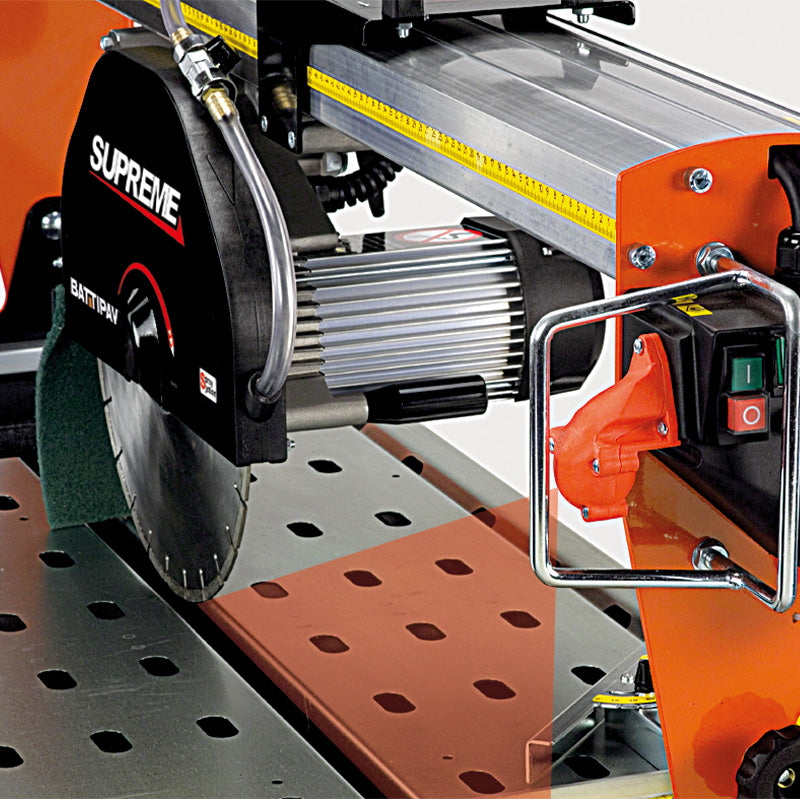

The saw runs on 115V / 60Hz power with a 3 HP / 2.2 kW motor, thermal protection, amperometric protection, and a cutting progress system with handwheel control. Laser instrument, wheels, fence, adjustable legs, adjustable goniometer fence, and S3 water recycling pump are supplied standard. Diamond blade is not included.
Article Number
82601
Model
SUPREME 260S
Product Use
Natural Stone, Granite, Marble Slabs, Large-Format Tile
Cutting Type
Straight Cuts and 45° Angle Cuts
Max Cutting Length
2600 mm
Diagonal Tile Cutting Capacity
1839 x 1839 mm
Max Cutting Thickness
85 mm
Max 45° Cutting Depth
60 mm
Max Cutting Depth with 2 Runs
135 mm

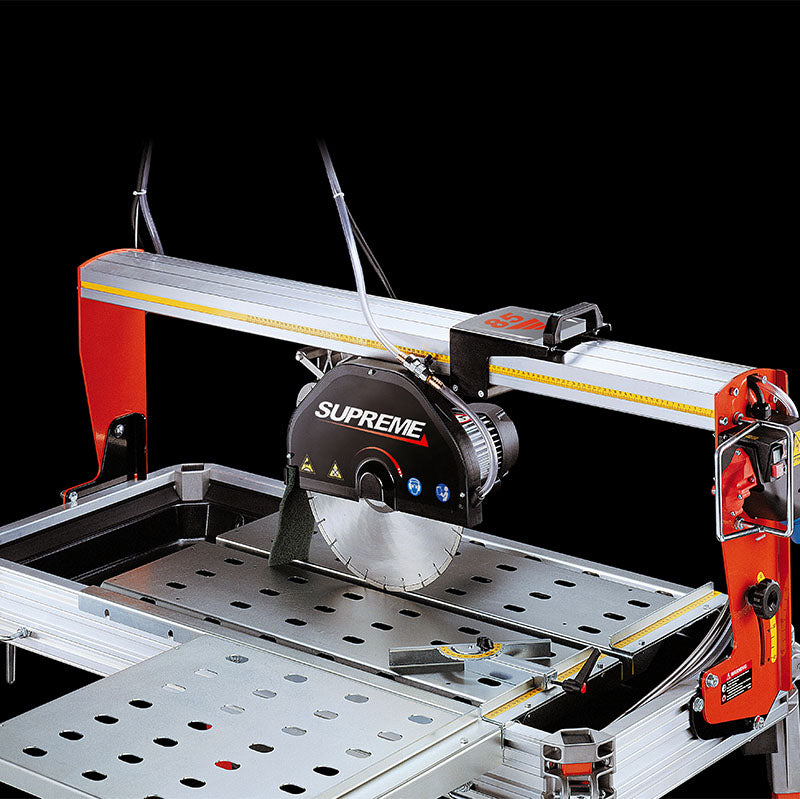

Blade Diameter
300 mm
Blade Included
No
Tool Hole
25.4 mm
Rotation Speed
2800 rpm
Motor Power
3 HP / 2.2 kW, 9 A
Engine Type
115V / 60Hz
Thermal Protection
160°C
Amperometric Protection
13 A
Water Pump
S3 Water Recycling Pump
Water Tank Capacity
Min. 45 / Max. 50 Liters
Side Bench Dimension
2715 x 625 mm
Machine Dimensions
3365 x 770 x H 1410 mm
Bridge

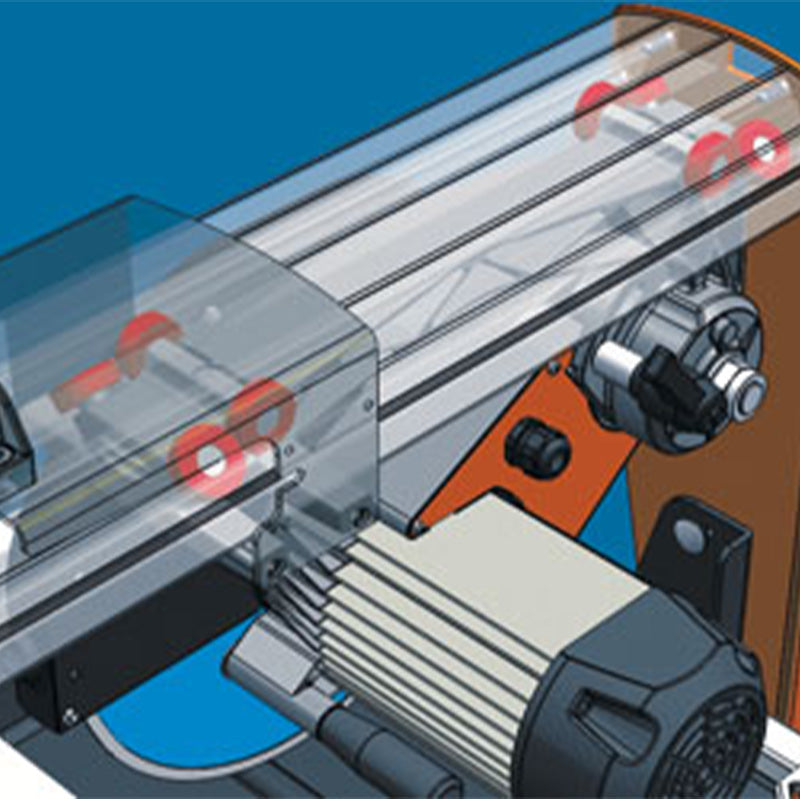

High-Resistance Aluminum Rail with Interchangeable Stainless Steel Bearing Tracks
Carriage
Sliding Motor Group with 8 Ball Bearings

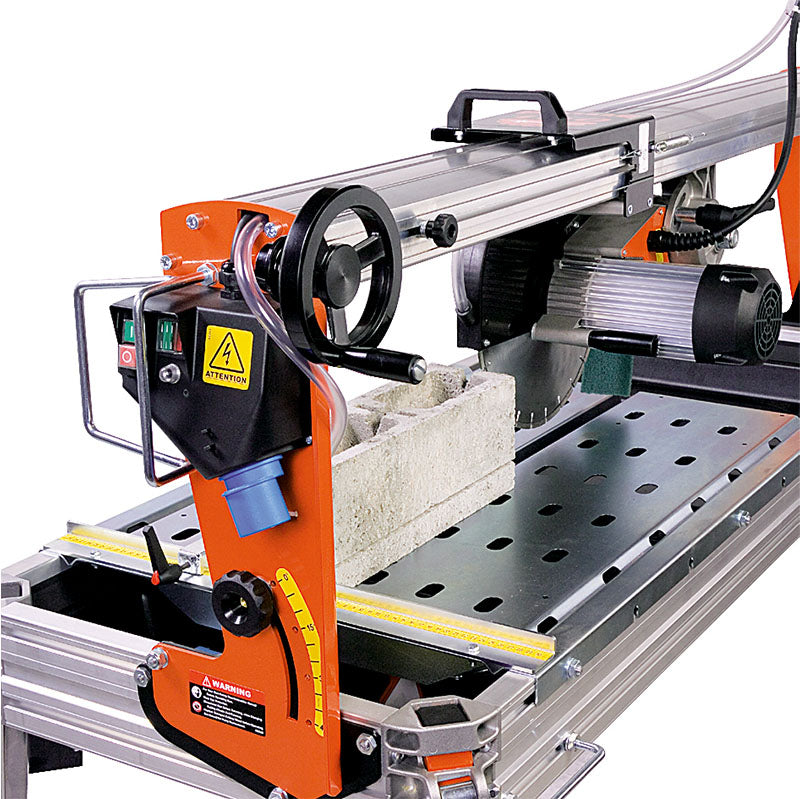

Cutting Progress System
Standard Handwheel Adjustment
Included Standard
Laser Instrument, Wheels, Fence, Adjustable Legs, Adjustable Goniometer Fence
Optional
Side Tile Support, Long Slot for Side Tile Support, Side Bench with Rollers, Extension Side Bench
Weight
356.3 lbs (161.6 kg)
