SMITH Manufacturing  |  SKU: SPS10G

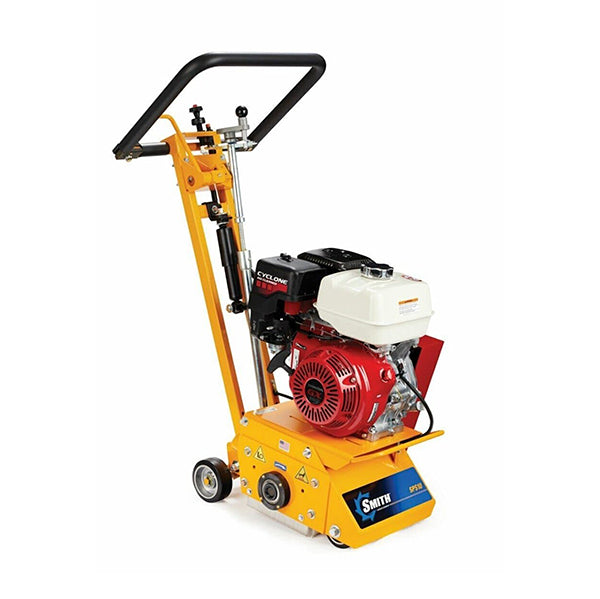

SMITH SPS10 Gasoline-Powered All-Purpose Scarifier

$7,34990
Shipping calculated at checkout.

The SMITH SPS10 is the industry's most popular all-purpose scarifier. Users say the SPS10 outperforms any other competitive model, and can outlast even the toughest operators.

It's available with many different cutters and accessories to tackle any type of surface-preparation and removal job on asphalt or concrete. You can rely on this easy-to-use, maintain, and operate scarifier/grinder.

Get the high-speed kit for diamond grooving and shaving.

Best for any and all surface-preparation, including groove inlay, removal on asphalt or concrete, sidewalk grinding, and more. Very versatile machine, capable of delivering a wide array of finishes.

Standard Features
Variable depth adjustment, Engage cam lever, Vacuum port, Remote power shutoff, Ergonomic, vibration-dampening handlebar, Side-loading drums, Serviceable bearings
Power Options
SPS10.H13 - 13 HP Honda gasoline engine
25N986 - 13 HP with Depth Control System
SPS10.E7.230.1 - 7.5 HP Leeson electric (230V/1ph/60Hz/35A)
SPS10.E7.230.3 - 7.5 HP Leeson electric (230V/3ph/60Hz/18A)
SPS10.E7.380.3.50 - 7.5 HP Leeson electric (380V/3ph/60Hz/8A)
SPS10.E7.460.3 - 7.5 HP Leeson electric (460V/3ph/60Hz/9A)
Removal and Speed
≤ 10" wide, 1/4" depth/pass, ≤ 700 SF/hour
Cutter Choices
Carbide scrapers, Carbide milling cutters, 4N1 carbide strippers, Carbide flails, Steel flails (beams/stars), Carbide planing picks, Diamond drums (with high-speed kit), Wire brush
Options
Edger (as close as 1.27" / 3.23cm), Water kit, Line pointer, Tach/hour meter, Front feathering wheel
Size / Weight
Weight: 250 lbs (113.4 kg)
Dims: 38" L x 19" W x 44" H
