Trusted Source for Diamond Tools
Diamond Products  |  SKU: 05099

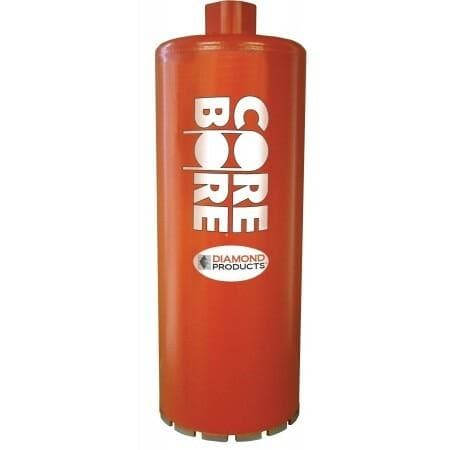

Heavy Duty Orange Wet Core Bore

$10390 $20500
Shipping calculated at checkout.
Orange Core Bore Size Options
Material Application

The Heavy Duty Orange Wet Core Bore is designed for wet drilling in concrete containing light to moderate steel. It offers excellent footage, fast drilling speed, and long coring life due to its high-quality diamond segments. Multiple diameters, hub sizes, and custom bond options are available upon request.

Ordering Information

All core bits may be ordered with custom bonds. All diameters are nominal. Exact tolerances are available upon request.

Applications
Wet Drilling in Concrete with Light to Moderate Steel
Core Bit Lengths
1/2"–7/8": 12" Standard Length
1"–14": 13" Standard Length
16": 19" Standard Length
18": 22" Standard Length
20"–30": 23" Standard Length
Custom lengths available upon request
Hub Sizes
1/2"–1-1/2": 5/8"-11 Threaded Hub
1-5/8" and Up: 1-1/4"-7 Threaded Hub
Segment Type
High-Quality Diamond Segments
Use
Wet Only


Available Sizes and Catalog Numbers

Available in a wide range of diameters from 1/2" to 6", each with multiple segment and hub configurations. Full spec sheet and CAT numbers available upon request.
