SMITH Manufacturing  |  SKU: 25R105

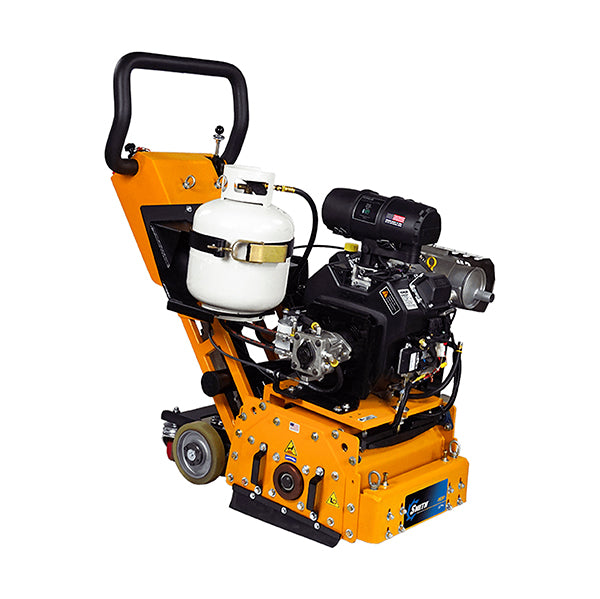

SMITH FS351 Propane Self-Propelled Scarifier / Shaver with DCS

$43,13990
Shipping calculated at checkout.
Options

Just like our standard FS351 propane unit, only with our popular Depth-Control System (DCS)!

The SMITH FS351 has an all-steel chassis, lockable depth-control settings, adaptable for diamond shaving, rotoplaning or carbide scarifying, vacuum pickup location to contain debris. Also features lower vibration and extended bearing life, new lifting carriage with height-adjustment lever, fewer moving parts, and more.

Best for diamond grinding, leveling concrete floors, cleaning surface marks, grooving trench control joints, removing concrete curls, asphalt high spots. Used by concrete and asphalt professionals indoors and out.

Standard Features
Electric start, Variable depth adjustment, Engage cam lever, Vacuum port, Remote power shutoff, Ergonomic, vibration-dampening handlebar, Side-loading drums, Sealed bearings, Self-propelled
Power
FS531.K25P - 25 HP Kohler propane engine
Other Power Options
FS351.K38EFI – 38 HP Kohler gasoline
FS351.E20.DF.380 – 20 HP Electric (380V)
FS351.E20.DF.460 – 20 HP Electric (460V)
Removal and Speed
≤ 15" wide, 3/8" depth/pass, ≤ 1000 SF/hour
Cutter Choices
Carbide scrapers, Carbide milling cutters, 4N1 carbide strippers, Carbide flails, Steel flails (beams/stars), Carbide planing picks, Diamond drums (with high-speed kit), Wire brush, PCD
Options
Water kit, Height-control wheels, Line pointer, Transport wheel
Size / Weight
695 lbs (315.25 kg)
48 x 26 x 44 in
