EXTRA 3300S SUPERLUNGA
Regular price
$10,49990
Unit price

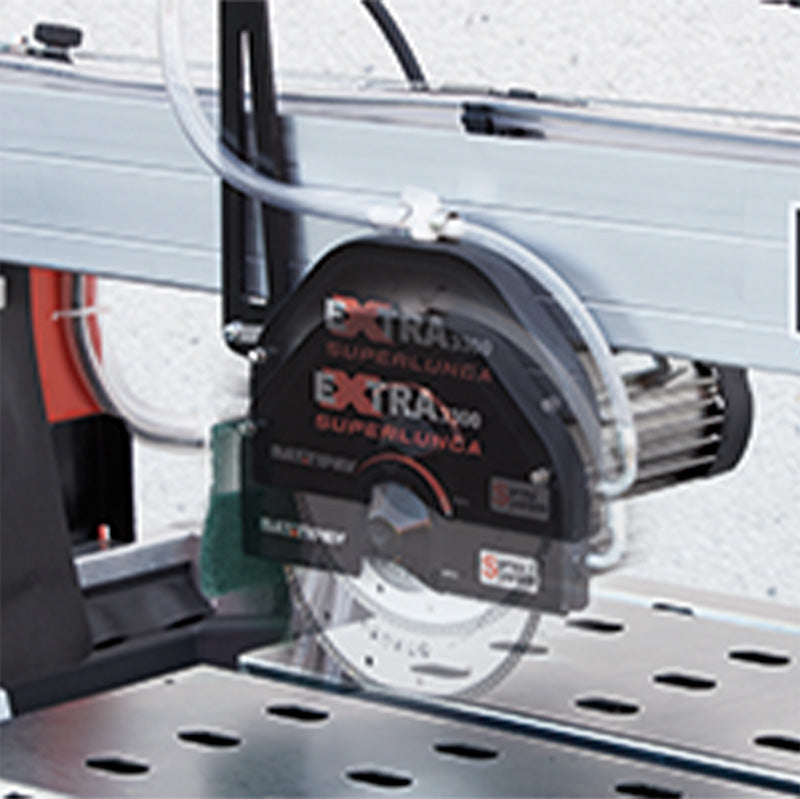

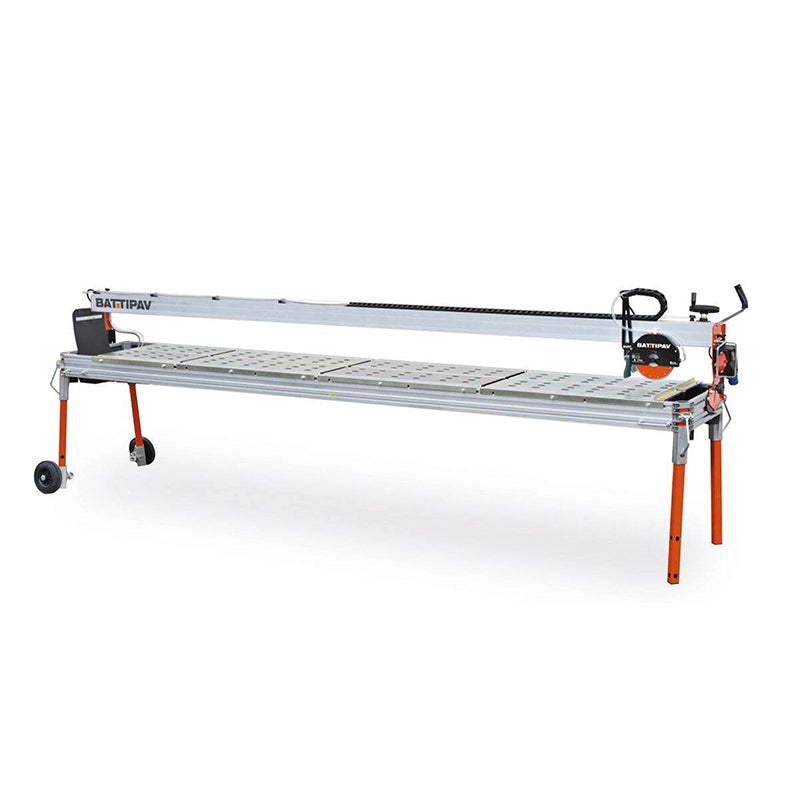

The EXTRA 3300S Superlunga is a radial tile saw for straight cuts and 45° angle cuts on oversized porcelain tile. It has a 3300 mm maximum cutting length, 40 mm maximum cutting thickness, and a plunging cutting head that can be locked at the required cutting height.
The saw runs on single-phase 230V power with a 1.8 HP / 1.4 kW motor and uses a 200 mm diamond blade with a 25.4 mm arbor. It includes a laser instrument, wheels, fence, water recycling pump, cutting progress system, and four extension side benches as standard.
Article Number
6733001
Model
EXTRA 3300S Superlunga
Product Use
Oversized Porcelain Tile Cutting
Cutting Type
Straight Cuts and 45° Angle Cuts
Max Cutting Length
3300 mm
Diagonal Tile Cutting Capacity
2330 x 2330 mm
Max Cutting Thickness
40 mm
Max 45° Cutting Depth
35 mm
Max Cutting Depth with 2 Runs
55 mm
Blade Diameter
200 mm
Tool Hole
25.4 mm
Rotation Speed
2800 min-1
Motor Power
1.8 HP / 1.4 kW
Engine Type
Single-Phase 230V~50Hz
Thermal Protection
170°C
Water Pump
S1 Water Recycling Pump
Water Tank Capacity
Max. 25 Liters
Side Bench Dimension
3345 x 625 mm
Machine Dimensions
3975 x 900 x H 1260 mm

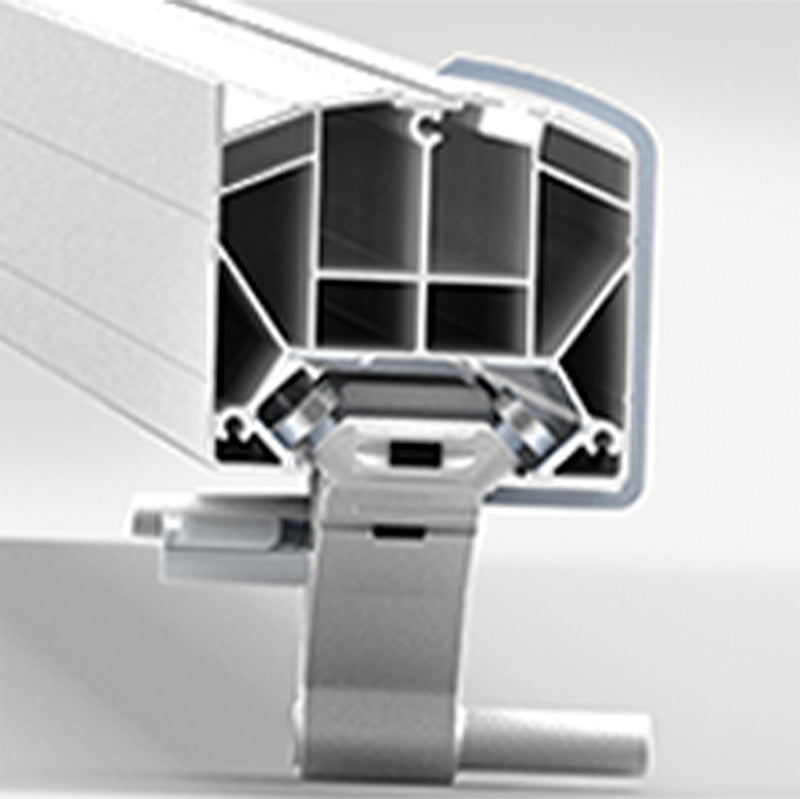

Bridge
High-Resistance Aluminum Extrusion with Interchangeable Stainless Steel Bearing Tracks
Cutting Head
Sliding, Tilting, and Plunging Cutting Head

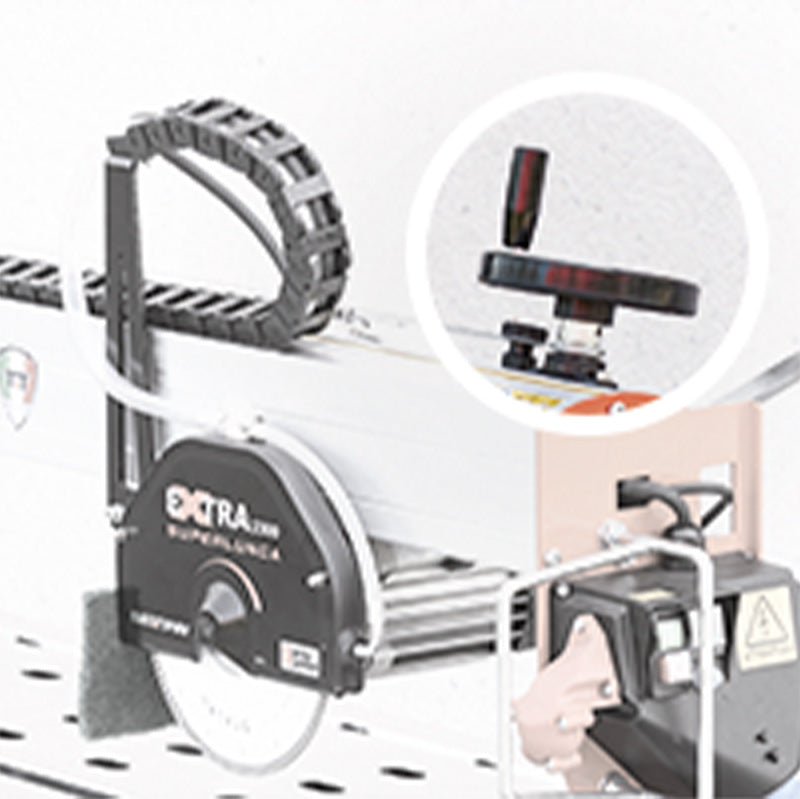

Cutting Progress System
Standard Handwheel Adjustment
Extension Side Bench
4 Pieces Supplied Standard
Included Standard
Laser Instrument, Wheels, Fence, Adjustable Legs, Adjustable Goniometer Fence
Optional

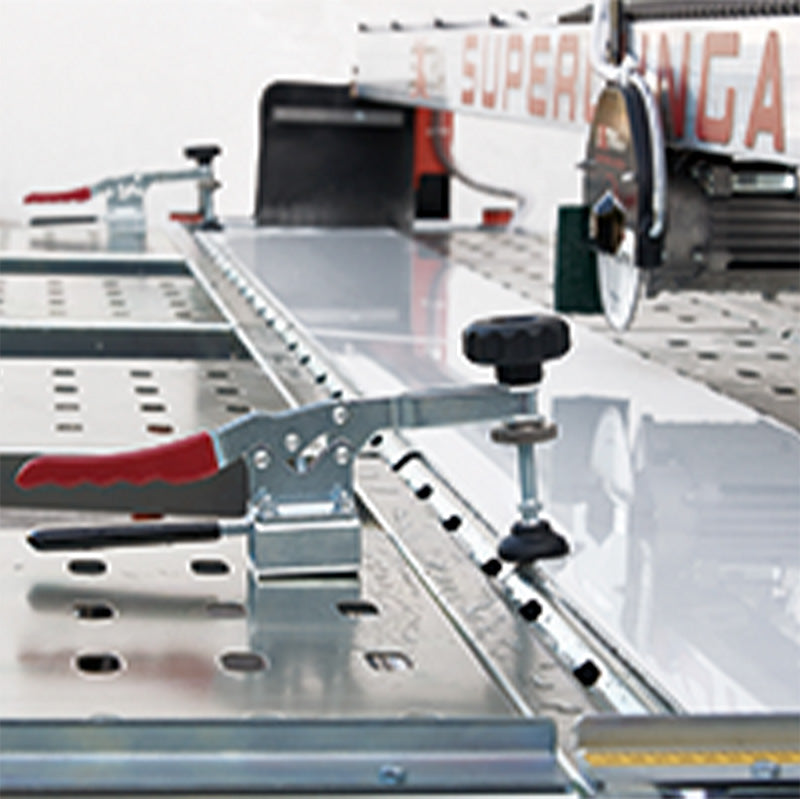

Tile Lock System, Side Bench with Rollers, Water Cooling Option
Weight
395.7 lbs (179.5 kg)
