Diamond Products  |  SKU: CC190PRO-EE-DCV

CC190PRO-EE First-Cut Early Entry Saw

$31,07290
Shipping calculated at checkout.

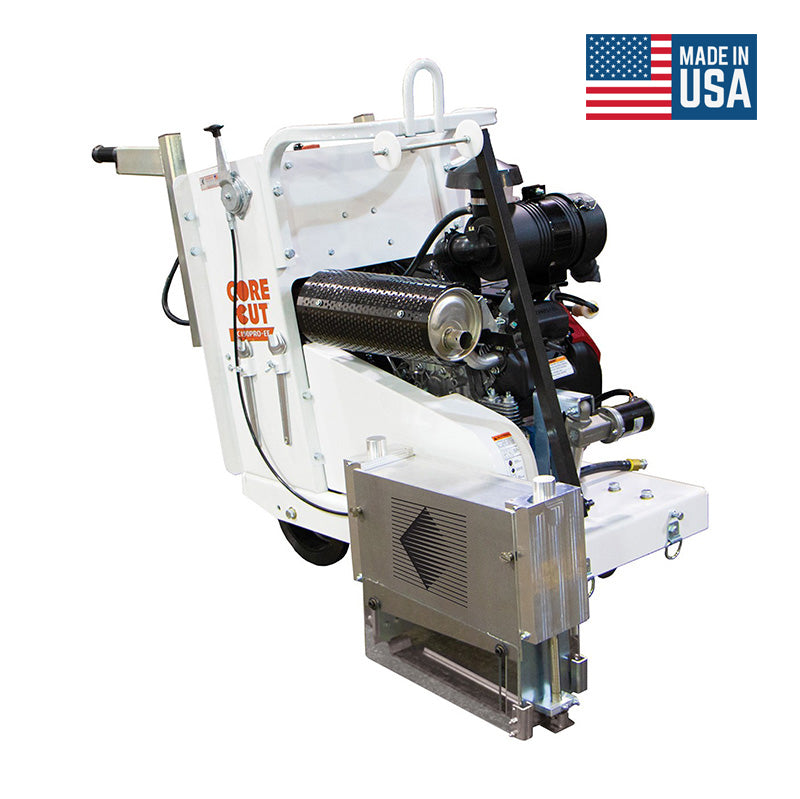

CC190PRO-EE First-Cut Saw

The Diamond Products CC190PRO-EE First-Cut is a walk-behind early-entry saw with a 14" blade and up to 3-1/2" cutting depth. It’s self-propelled and features electric blade raise/lower, adjustable handlebars, and self-aligning shaft bearings. Includes electric start, low oil alert, tach/hour meter, and a skid plate to reduce edge spalling.

Product Video

Blade Capacity
14"
Max Cutting Depth
3-1/2"
Blade Shaft RPM
3,500
Blade Shaft Diameter
1-1/4"
Arbor Size
1" (single drive pin)
Blade Raise/Lower
Electric actuator
Transmission
Eaton Model 6
Drive Speed
0–80 ft/min
Handle Bars
Adjustable, raise/lower
Includes
Electric start, low oil alert, tach/hour meter
