Diamond Products  |  SKU: 5801346

CC150XL-EE First-Cut Early Entry Saw

$4,95790
Shipping calculated at checkout.
CC150XL-EE First-Cut Saw

The Diamond Products CC150XL-EE is an early entry saw designed for cutting green concrete up to 1-1/2" deep with a 6-1/2" diameter blade. It has a spring-loaded skid plate, telescoping adjustable handles, and comes in both gasoline and electric options. Features include a five-wheel frame for stability, an up-cut blade design for debris clearance, and a vacuum attachment guard.

Product Video

Blade Capacity
6-1/2"
Max Cutting Depth
1-1/2"
Blade Shaft RPM
4,020
Blade Shaft Diameter
1-1/4"
Arbor Size
1"
Depth Indicator
Standard

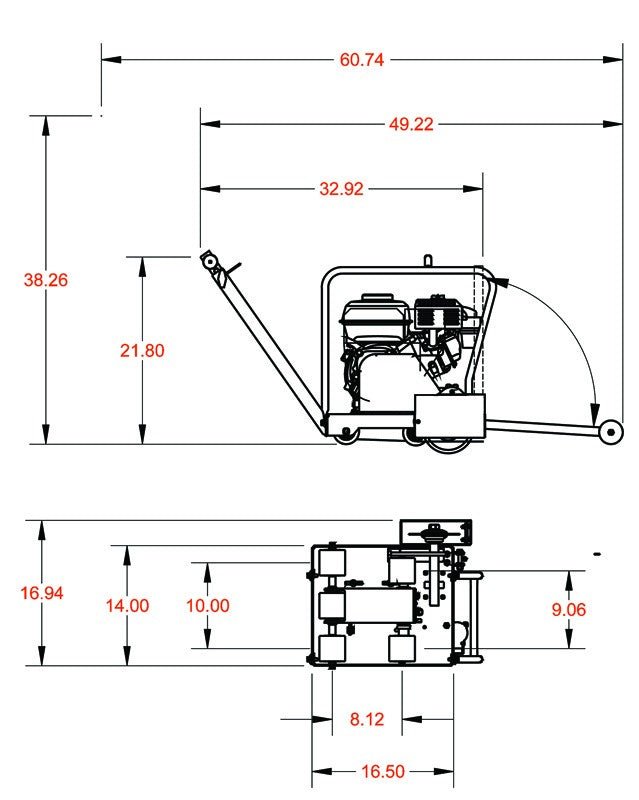

Dimensions
16.94" W × 21.80" H × 32.92" L
Engine Options

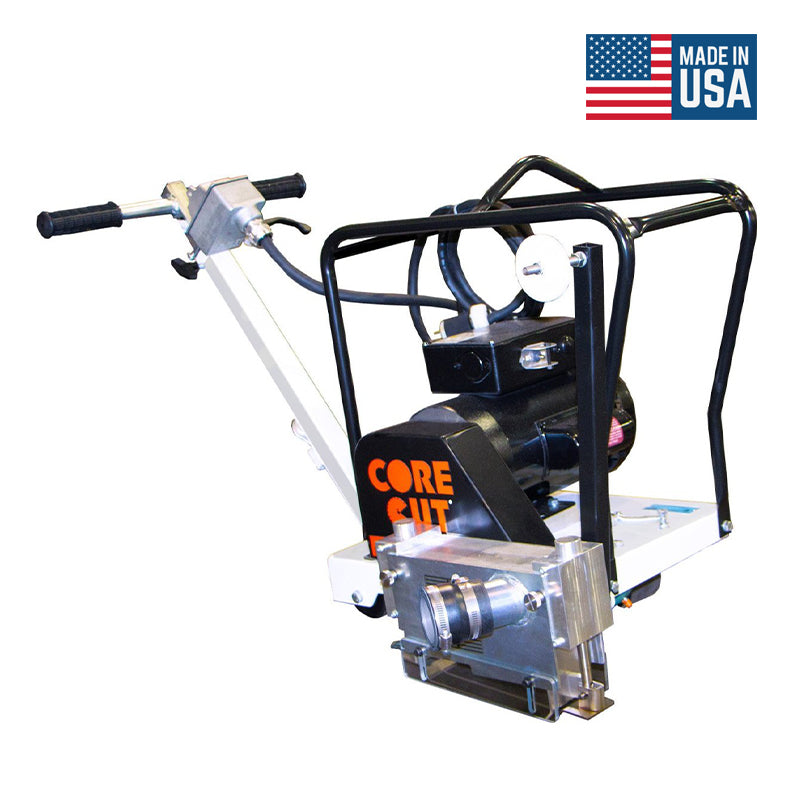

Baldor Electric – 120 lb

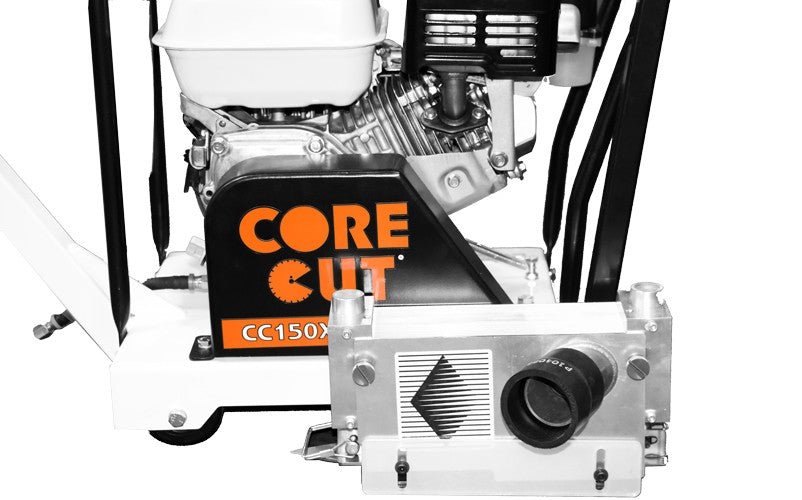

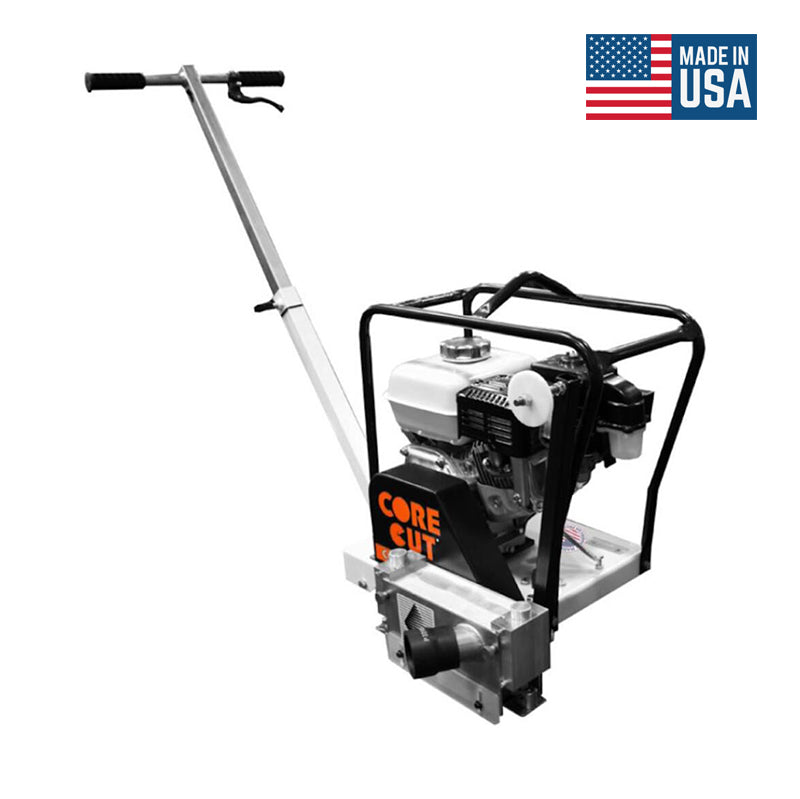

Honda® GX160 Gas – 100 lb
Briggs® Vanguard Gas – 105 lb
Additional Features
Vacuum attachment guard, spring-loaded blade raise/lower, cyclone air filter (gas models), single ribbed drive belt
