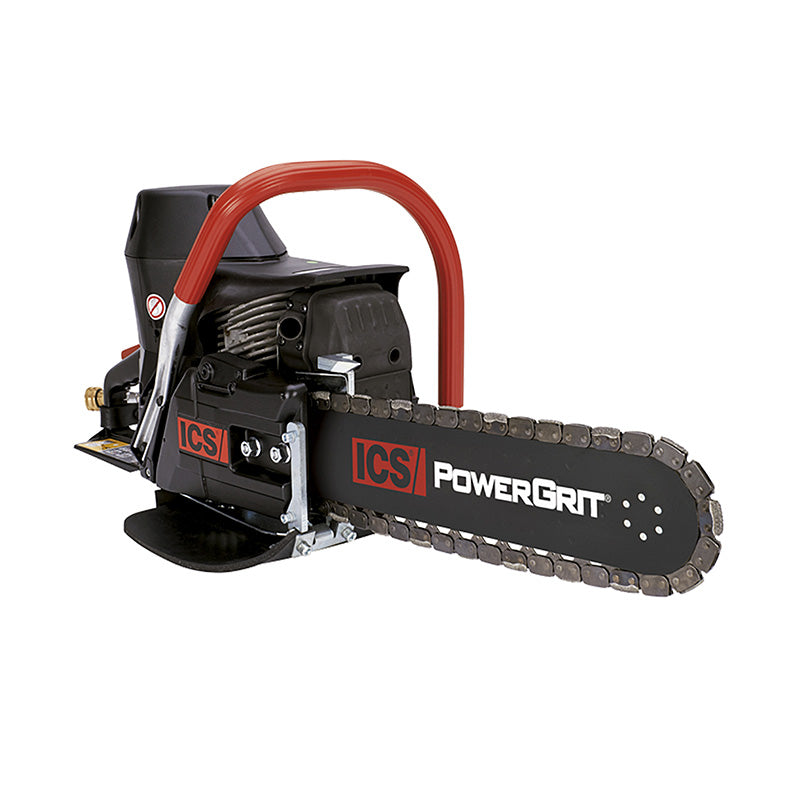

680ES-PG10, Powergrit Saw Package
The ICS 680ES-PG10 PowerGrit Saw Package includes the 680ES powerhead, 10 in. / 25 cm FORCE4 guidebar, and PowerGrit chain with 24 drive links and 48 segments. It is built for the general construction user and can be converted to run the FORCE3 line of diamond chains by switching the guidebar and drive sprocket. The multifunction lever and specially designed carburetion and ignition systems help with easy starting, cooler operation, and dependable performance at just about any elevation.
Product Type
Gas Saw Package
Part #
580423
Package Includes
680ES powerhead, 10 in. / 25 cm FORCE4 guidebar, and PowerGrit chain (24 drive links / 48 segments)
Compatible With
Can be converted to run the FORCE3 line of diamond chains by switching the guidebar and drive sprocket
Applications
HDPE, Ductile Iron, Cast Iron, PVC, AC Pipe
Product Details
Sold with PowerGrit chain, cuts ductile iron, cast iron, pvc, hdpe and ac pipe
Air Filter
Polyester air filter designed specifically for wet cutting
Controls
Multifunction lever controls choke, throttle advance, run and stop modes
Drive Sprocket Adapter
Extended drive sprocket adapter offers easy chain assembly
Power Type
Gas
Engine Type
2-stroke, single cylinder, air cooled
Displacement
4.7 cu in (76.5 cc)
Engine Speed Max
11,500 +/- 500 rpm (max)
Engine Speed Idle
2,800 - 3,200 rpm
Fuel Mix Ratio
50:1 (2%) fuel-to-oil
Fuel Capacity
0.23 gal (0.88 L)
Horsepower
5 hp (3.7 kW)
Weight, Saw Only
21 lbs (9.6 kg)
Cutting Depth
Up to 10 in (25 cm)
Bar Length
10 in (25 cm)
Chain Length
10 in (25 cm)
Additional Features
Operates FORCE3® bar and chain consumables up to 14” (35 cm)
Deep cutting solution for obstructed or small openings
Cut squares as small as 4” x 4” (10 cm x 10 cm)
Easy-to-start in all weather
Deep cutting solution for obstructed or small openings
Cut squares as small as 4” x 4” (10 cm x 10 cm)
Easy-to-start in all weather
Noise Level (Power, LWA)
117 dB(A), (Kwa=3.0 dB(A))
Noise Level (Pressure, LpA)
101 dB(A), (K=2.0 dB(A))
Front Handle Vibration
7.2 m/s2 (K=1.0 m/s2)
Rear Handle Vibration
8.5 m/s2 (K=1.0 m/s2)
Water Supply (Min)
20 psi (1.4 bar)
Water Flow Req (Min)
2 gpm (8 lpm)
Unit of Measure
Each
