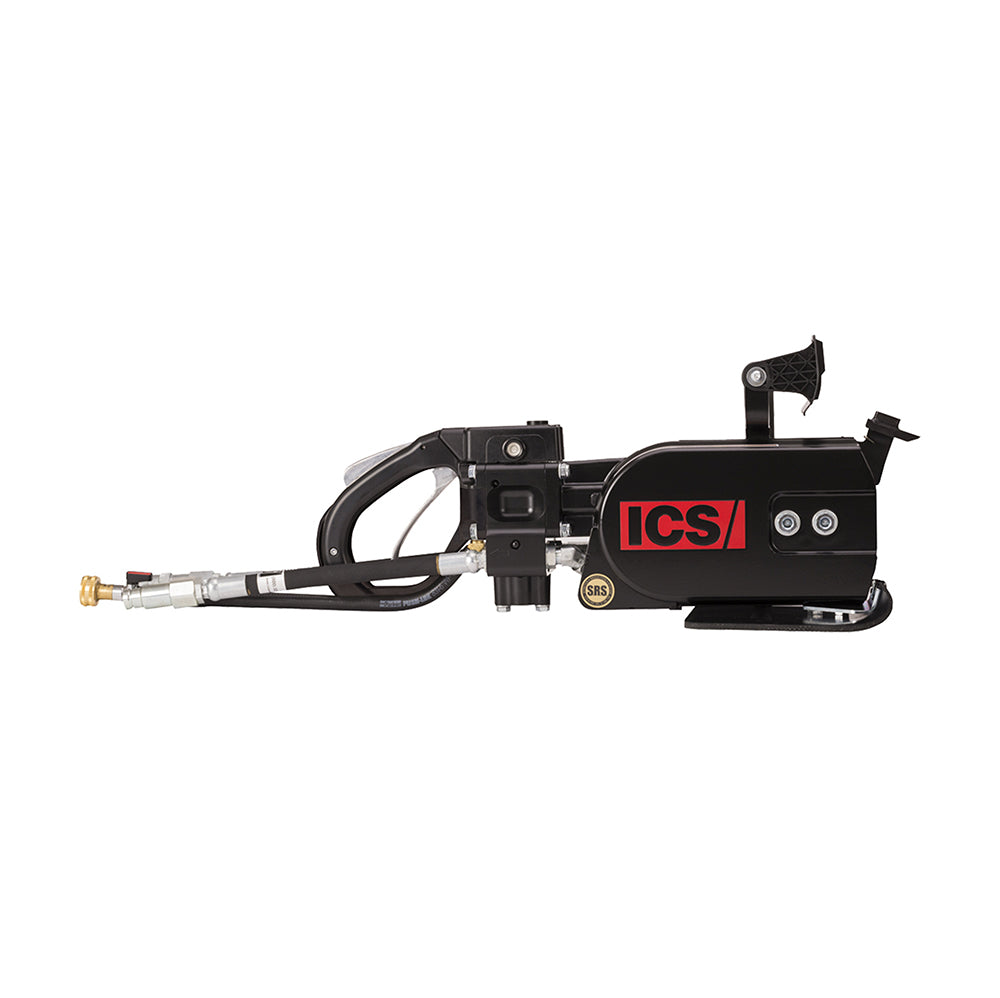

890 Hydraulic Powerhead, 12 gpm/45 lpm, 1ft/30 cm hose whips
The ICS 890 Hydraulic Powerhead with 12 gpm / 45 lpm hydraulic supply and 1 ft / 30 cm hose whips is part of the 890 Series hydraulic cutting system with FORCE4® technology. It features a redesigned rear handle, 3 scratch resistant bubble levels, quick field drive sprocket replacement, and a secondary water shut off valve for flow metering and water conservation.
Product Type
Hydraulic Power Cutter
Part #
566112
Product Details
Redesigned rear handle offers improved ergonomic cutting and greater durability
3 scratch resistant bubble levels for more accurate vertical and horizontal cutting
Drive sprocket design allows for quick replacement in the field
Universal motor across 890 series power cutter platforms
Secondary water shut off valve for flow metering and water conservation
3 scratch resistant bubble levels for more accurate vertical and horizontal cutting
Drive sprocket design allows for quick replacement in the field
Universal motor across 890 series power cutter platforms
Secondary water shut off valve for flow metering and water conservation
Flush Cut?
No
Hose Whip Length
1 ft (30 cm)
Hydraulic Supply (gpm)
12 gpm (45 lpm)
Hydraulic Supply (psi)
2,500 psi (172.5 bar)
Operating Speed (Avg Free Running with Chain)
5,500 sfm
Applications
HDPE, Asphalt, Ductile Iron, Brick, Cast Iron, Block, Concrete, Masonry, PVC, Stone, AC Pipe
Power Type
Hydraulic
Weight, Saw Only
23.5 lbs (10.6 kg)
Weight with Bar and Chain
27.3 lbs (12.4 kg) with 15 in (38 cm) bar and chain
Cutting Depth
Up to 25 in (63 cm)
Bar Length
10 in (25 cm)
15 in (38 cm)
20 in (50 cm)
25 in (63 cm)
15 in (38 cm)
20 in (50 cm)
25 in (63 cm)
Chain Length
10 in (25 cm)
15 in (38 cm)
20 in (50 cm)
25 in (63 cm)
15 in (38 cm)
20 in (50 cm)
25 in (63 cm)
Noise Level (Power, LWA)
107 dB(A), (K=0.2 dB(A))
Noise Level (Pressure, LpA)
98 dB(A), (KK=0.7 dB(A))
Torque
10 ft-lbs (13.5 Nm)
Horsepower
8 hp (6.0 kW)
Front Handle Vibration, ahv eq Concrete Cutting
2.0 m/s2 (K=0.1 m/s2)
Rear Handle Vibration, ahv eq Concrete Cutting
6.0 m/s2 (K=1.4 m/s2)
Front Handle Vibration, ahv eq Pipe Cutting
4.6 m/s2 (K=0.1 m/s2)
Rear Handle Vibration, ahv eq Pipe Cutting
4.8 m/s2 (K=0.3 m/s2)
Quick Disconnects
1 cm quick disconnects included for convenience
Water Supply (Min)
20 psi (1.4 bar)
Water Flow Req (Min)
2 gpm (8 lpm)
Specification Notes
Product specification data shown is rated based on maximum input conditions and efficiency assumptions and may vary dependent on power supply.
Unit of Measure
Each
