ICS  |  SKU: 576153

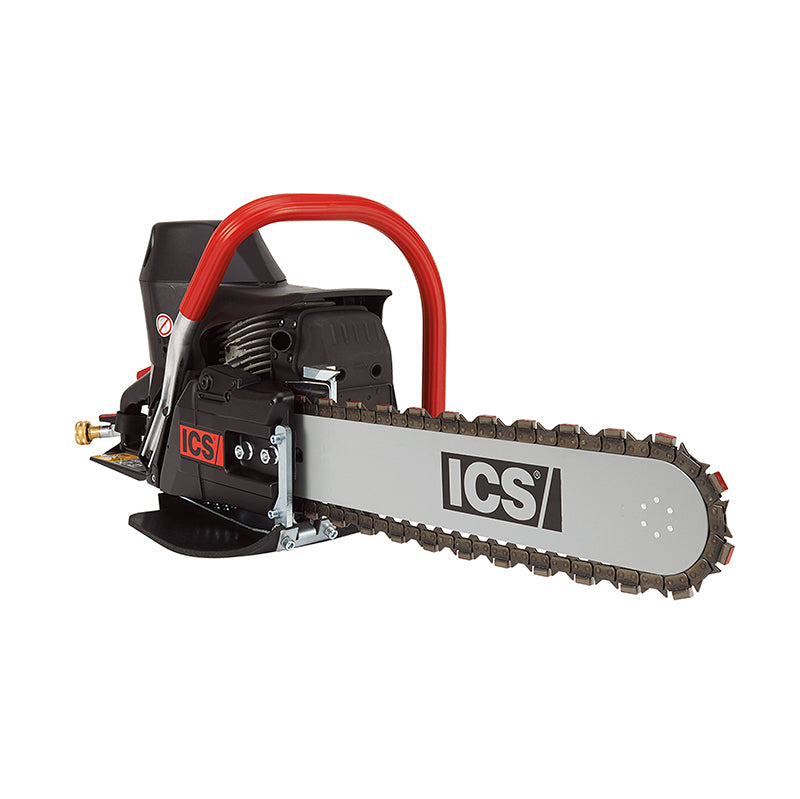

680ES-14 GC Gas Saw Package

$2,75490
Shipping calculated at checkout.

The ICS 680ES-14 GC Gas Saw Package is built to meet the operation and flexibility demands of the general construction user. This package includes a 35 cm / 14 in GC guidebar and FORCE3® Speedster® chain. Easy starting, cooler operation, and dependable performance come from the multifunction lever and specially designed carburetion and ignition systems.

Product Type
Gas Concrete Saw Package
Part #
576153
Package Includes
35 cm / 14 in GC guidebar and FORCE3® Speedster® chain
Air Filter
Polyester air filter designed specifically for wet cutting
Controls
Multifunction lever controls choke, throttle advance, run and stop modes
Drive Sprocket Adapter
Extended drive sprocket adapter offers easy chain assembly
Applications
Asphalt, Brick, Block, Concrete, Masonry, Stone
Power Type
Gas
Engine Type
2-stroke, single cylinder, air cooled
Displacement
4.7 cu in (76.5 cc)
Engine Speed Max
11,500 +/- 500 rpm (max)
Engine Speed Idle
2,800 - 3,200 rpm
Fuel Mix Ratio
50:1 (2%) fuel-to-oil
Fuel Capacity
0.23 gal (0.88 L)
Horsepower
5 hp (3.7 kW)
Weight, Saw Only
21 lbs (9.6 kg)
Cutting Depth
Up to 14 in (35 cm)
Bar Length
14 in (35 cm)
Chain Length
14 in (35 cm)
Additional Features
Operates FORCE3® bar and chain consumables up to 14” (35 cm)
Deep cutting solution for obstructed or small openings
Cut squares as small as 4” x 4” (10 cm x 10 cm)
Easy-to-start in all weather
Noise Level (Power, LWA)
117 dB(A), (Kwa=3.0 dB(A))
Noise Level (Pressure, LpA)
101 dB(A), (K=2.0 dB(A))
Front Handle Vibration
7.2 m/s2 (K=1.0 m/s2)
Rear Handle Vibration
8.5 m/s2 (K=1.0 m/s2)
Water Supply (Min)
20 psi (1.4 bar)
Water Flow Req (Min)
2 gpm (8 lpm)
Unit of Measure
Each
